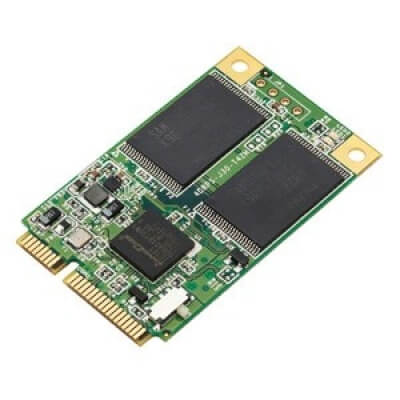

mSATA 2IE
Innodisk’s mSATA 2IE is designed in a standard mini PCIe form factor with a SATA interface. This unique combination provides fast data transfer rate performance and allows for effective integration in small form factor applications, such as digital signag
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Features:
•iSLC technology
•iSMART disk health monitoring
•Intelligent error recovery system
•Excellent data transfer speed
•Write protection security
•Zero mechanical interference
•Anti-vibration mechanical design
•JEDEC standard MO-300 dimensions
•Enhanced power cycling management
Benefits:
Boasting excellent features at only half the price of an SLC-based SSD, the Innodisk mSATA 2IE provides manufacturers with a suitable replacement for hard disk drives (HDDs).
•Enables personal computer design to be smaller and more compact
•Reduces operation system boot time
•Consumes less power than an HDD
•Can be configured as a boot device or a data storage device
Specifikace
| Model Name | mSATA 2IE |
| Interface | SATA II 3.0Gb/s |
| Type | Standard |
| Flash Type | iSLC |
| Pin Definition | mSATA |
| Capacity | 8GB~64GB |
| Max. Channels | 4 |
| Sequential R/W (MB/sec, max.) | 130/120 |
| Max. Power consumption | 1.25W (3.3V x 380mA) |
| Thermal Sensor | Y |
| External DRAM Buffer | N |
| H/W Write Protect | Y |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Conformal Coating | N |
| Dimension (WxLxH/mm) | 29.8 x 50.8 x 3.5 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C |
Fotogalerie
Ke stažení
