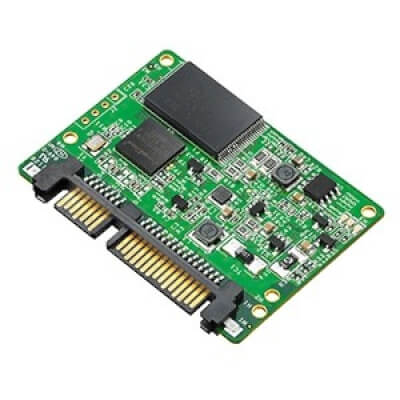

InnoLite SATA Slim D150Q
The InnoLite SATA Slim D150Q offers high performance and high capacity in a tiny form factor. With smaller dimensions, it is the best alternate solution for replacing 2.5” SSDs in embedded system that have mechanical and space challenges. Compliant with J
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Features:
•High Performance
•S.M.A.R.T / iSMART disk health monitoring tool
•Excellent data transfer speed
•Built-in BCH error correction code
•Bad block management
•Low power consumption
Benefits:
The Innodisk InnoLite SATA Slim D150Q provides manufacturers with a cost-effective hard disk drive (HDD) replacement with MLC NAND flash.
•Delivers longer life and better performance than current MLC flash IC based SSD solutions
•Improves SSD random data transfer rate and lifespan, particularly for data file sizes equal to or smaller than 128 KB
•Reduces operation system boot time
•Consumes less power than an HDD
Specifikace
| Model Name | InnoLite SATA Slim D150Q |
| Interface | SATA II 3.0Gb/s |
| Type | Standard |
| Flash Type | MLC |
| Connector | 7pin+15pin |
| Capacity | 8GB~128GB |
| Max. Channels | 4 |
| Sequential R/W (MB/sec, max.) | 120/70 |
| Max. Power consumption | 1.15W (5V x 230mA) |
| Thermal Sensor | Y |
| External DRAM Buffer | N |
| H/W Write Protect | N |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Conformal Coating | N |
| Dimension (WxLxH/mm) | 54.0x 39.8 x 4.0 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; |
| Extended Grade: -20°C ~ +85°C |
