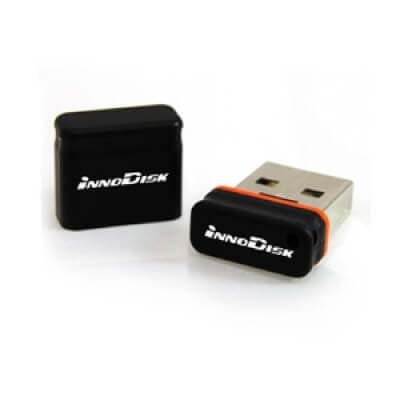

Industrial Nano USB
The Innodisk Nano USB takes about one-third the space of its original industrial USB counterpart, and is currently the smallest industrial USB storage solution in the world. In particular, it works well for applications that are required to operate at tem
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Features:
•i-S.M.A.R.T utility for health monitor
•Intelligent error recovery system
•Excellent data transfer speed
•Designed with electroplating golden finger
•Metal housing for ESD proof
•Enhanced power cycling
•Small size: 19.4 x 15.4 x 6.9mm (L x W x H)
Benefits:
The Innodisk Industrial Nano USB, with gold finger manufactured by a special hardening process, provides manufacturers with more secured applications than with regular USB devices.
•Delivers higher quality data transmission and greater durability
•Ensures data integrity during abnormal power failure with enhanced power cycling
•ESD resistant to 8KV (contact discharge) and 15KV (air discharge)
•Ensures an optimal working condition, including detecting and reporting various indicators, such as erase count, bad block count, ECC reliability, and lifespan, which are monitored through the i-S.M.A.R.T utility
•Supports a variety of tasks and can be used as an security key, and for data buffering
Specifikace
| Model Name | Industrial Nano USB |
| Interface | USB 2.0 |
| Type | Standard |
| Flash Type | SLC |
| Connector | Type A |
| Capacity | 1GB~8GB |
| Max. Channels | 1 |
| Sequential R/W (MB/sec, max.) | 19/17 |
| Max. Power consumption | 0.45W (5V x 90mA) |
| H/W Write Protect | N |
| Dimension (WxLxH/mm) | 15.4 x 19.4 x 6.9 |
| Vibration | 5G@7~2000Hz |
| Shock | 50G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; |
| Industrial Grade. OP: -40°C ~ +85°C |
