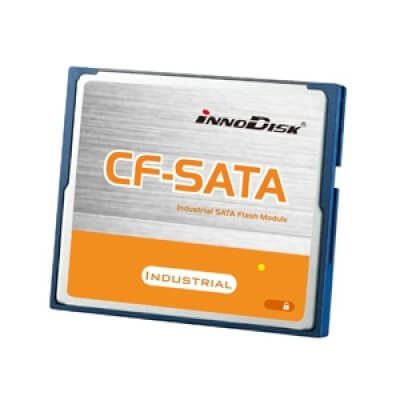

CF-SATA
The Innodisk CF-SATA shares the same mechanical design with the Compact Flash (CF) and complies with Serial ATA standards. By extracting unused pins from the CF50 pin, the CF-SATA can be an effective replacement solution for CF cards. With iSLC technology
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Features:
•50pin SATA interface
•Up to 64GB industrial-grade capacity
•Anti-shock and anti-vibration
•Excellent data transfer speed (R:120MB, W:95MB)
•Static wear-leveling algorithm support
•Built-in thermal sensor
•iSLC technology
Benefits:
The Innodisk CF-SATA provides manufacturers with a proven memory card solution that effectively replaces CF cards.
•Shares the CF50pin socket used by a compact flash card
•Notifies users about the health of the CF-SATA with a built-in LED light
•Adopted by several leading companies, such as ASUS, AAEON, Adlink, Avalue, Axiontek, PerfecTron, Lanner, and Portwell
Specifikace
| Model Name | CF-SATA |
| Interface | SATA II 3.0Gb/s |
| Type | Standard |
| Flash Type | iSLC |
| Connector | 50pin CF connector |
| Capacity | 2~64GB |
| Max. Channels | 4 |
| Sequential R/W (MB/sec, max.) | 120/95 |
| Max. Power consumption | 1 W (5V x 200mA) |
| Thermal Sensor | Y |
| H/W Write Protect | Optional |
| Dimension (WxLxH/mm) | 42.8 x 36.4 x3.3 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; |
| Industrial Grade. OP: -40°C ~ +85°C | |
