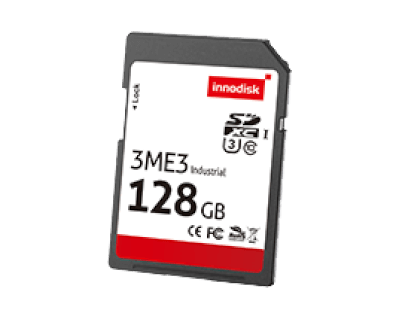

Industrial SD Card 3ME3
Innodisk 3ME3 is an industrial-grade SD card solution with an integrated industrial controller, which is designed for embedded applications.
Základní informace
- SD 3.0 interface
- High performance
- Power fail Management
- BCH ECC algorithm implement
Innodisk 3ME3 is an industrial-grade SD card solution with an integrated industrial controller, which is designed for embedded applications. With enhanced flash technologies and a powerful configurable BCH ECC engine, SD 3ME3 can achieve high-speed data transfer rates.
Innodisk industrial SD 3ME3 provides a wide range of capacities from 8GB to 128GB with MLC NAND Flash, and is fully compliant with SD3.0 and SD2.0 specifications.
Innodisk industrial SD 3ME3 are specifically designed for industrial PC and embedded applications for high performance. With its low power consumption and the above mentioned features, Innodisk industrial SD 3ME3 can be applied for industrial automation, SBC (single-board computer), medical equipment, infotainment, and mobile applications.
Specifikace
| Model Name | Industrial SD Card 3ME3 |
| Interface | SD 3.0 |
| Flash Type | MLC |
| Type | Standard |
| Capacity | 8GB~128GB |
| Max. Channels | 1 |
| Sequential R/W (MB/sec, max.) | 80/46 |
| Max. Power Consumption | 0.56W (3.6V x 158mA ) |
| ATA Security | N |
| S.M.A.R.T. | N |
| Dimension (WxLxH/mm) | 24 x 32.0 x 2.1 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
