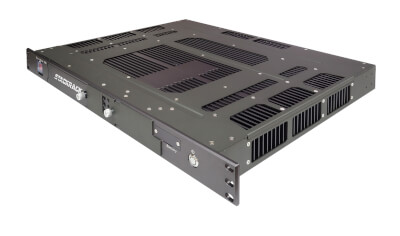

HORUS200
MIL-STD 19" 1U Rackmount Fanless Virtual Computer with Intel® Xeon®D-1587, 128GB DDR4 ECC RDIMM, 10-Gigabit Ethernet, 6 x Ethernet, Hardware Secure Erase, 12-40V DC-in
Základní informace
- Design for reliability under demanding MIL-STD-810G Thermal, Shock, Vibration, Humidity/EMI/EMC conditions
- Ultra-high performance Intel®Xeon®D-1587 (2.3GHz, 16 Cores, 32 Threads)
- Up to 128GB DDR4 ECC RDIMM
- 10-Gigabit Ethernet support
- Dual removable solid-state disk
- Hardware secure erase
- Windows 10/Server, Linux, VMware compatible
- 12-40V DC-in MIL-1275/704 power supply
- MIL-461E EMI/EMC compliance
HORUS200, 19" 1U Rackmount Fanless Virtual SuperComputer is driven by Intel® Xeon®D-1587 (2.3GHz, 16 Cores, 32 Threads, 24MB Cache), providing superior performance in data processing and supporting high flexibility in application. HORUS200 is an ideal solution for C4ISR with its design under consideration of efficiency, security, convenience, and ruggedness. HORUS200 equipped with dual 10-Gigabit and quad-Gigabit Ethernet, undeniably a great system for simultaneous data handling. Designed with removable solid-state disk and hardware secure erase enhance the mobility of this solution, plus MIL-STD-1275/704/461/810G Compliance, HORUS200 can be highly adaptable in harsh and unpredictable environment.
* C4ISR: A military terminology. Command, Control, Communications, Computers, Intelligence, Surveillance, Reconnaissance
Specifikace
| CPU | Intel® Xeon® Processor D-1587 (Frequency 1.7GHz, Turbo Boost Frequency up to 2.3GHz), 16-Core, 32 Thread Support, 24MB Smart Cache. Build-in Turbo Boost Technology 2.0, VPro and Hyper-Threading support. |
| Memory | 4 x DIMMs Up to 128GB ECC RDIMM DDR4 |
| Chipset | 2133MHz SoC, integrated with CPU |
| Graphics Processor | ASPEED AST2400 |
| Display Port | Resolution up to 1920x1200@60Hz 32bpp |
| HDD/SSD | 2 x 2.5" SSD |
| Ethernet | Quad Gigabit Ethernet via Intel® i350-AM2 Dual 10GBase-T LAN via Intel®X557-AT2 Realtek RTL8201N PHY (dedicated IPMI) |
| Front I/O | 2 x USB 2.0 Ports 1 x RS-232 Port 2 x 10/100/1000 Gigabit Ethernet 1 x DC-IN Rugged Souriau Connector ( 8ST7-08G98PN ) |
| Rear I/O | 1 x Secure Erase Button ( SSD2 support AES Secure Erase ) 1 x Power Switch with Dedicated LED 2 x USB 3.0 Ports 2 x 10/100/1000 Gigabit Ethernet 2 x 10GBase-T Ethernet 1 x IPMI 1 x Dual 2.5" HDD/SSD Easy Swap Tray 1 x Removable CR2032 CMOS Battery Tray |
| Power Input | MIL-STD-1275, MIL-STD 704 and DO-160 power supply ,12 to 40V ( 150W max ) |
| Operating System | Windows 10 64Bit, Windows Server 2008 R2, Windows Server 2012 R2 Ubuntu14.04 Fedora 20/23, RedHat Linux EL 7.1/7.2, Vmware ESXi 6.0, ESXi 6.5 |
| Dimension ( W x D x H ) | 430 x 325 x 44.6mm |
| Weight | 7.5Kg ( 16.5lbs ) |
| Chassis | SECC +Aluminum Alloy, Corrosion Resistant. |
| Finish | Anodic aluminum oxide ( Color Iron gray ) |
| Cooling | Natural Passive Convection / Conduction. No Moving Parts |
| Ingress Protection | IP50 |
| MIL-STD-810G Test | Method 507.5, Procedure II (Temperature & Humidity) Method 516.6 Shock-Procedure V Non-Operating (Mechanical Shock) Method 516.6 Shock-Procedure I Operating (Mechanical Shock) Method 514.6 Vibration Category 24/Non-Operating (Category 20 & 24, Vibration) Method 514.6 Vibration Category 20/Operating (Category 20 & 24, Vibration) Method 501.5, Procedure I (Storage/High Temperature) Method 501.5, Procedure II (Operation/High Temperature) Method 502.5, Procedure I (Storage/Low Temperature) Method 502.5, Procedure II (Operation/Low Temperature) Method 503.5, Procedure I (Temperature shock) |
| Reliability | No Moving Parts; Passive Cooling. |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -40 to 85°C |
| EMC compliance | MIL-STD-461E : CE102 basic curve, 10kHz - 30 MHz RE102-4, (1.5 MHz) -30 MHz - 5 GHz RS103, 1.5 MHz - 5 GHz, 50 V/m equal for all frequencies+E11:F24 EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV EN 61000-4-4: Signal and DC-Net: 1 kV EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV EN 61000-4-4: Signal and DC-Net: 1 kV EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV EN 61000-4-4: Signal and DC-Net: 1 kV EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV EN 55022, class A EN 61000-4-3: 10V/m CE and FCC |
