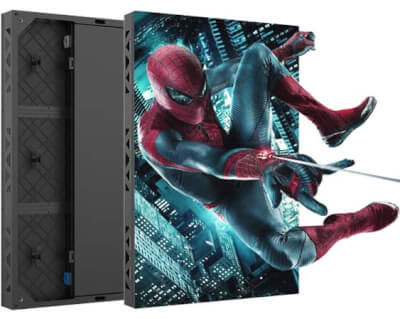

FL4T
Venkovní fixní LED displej.
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Rozteč bodů: 4,8 mm
Rozměry panelu: 500 x 750 (500 x 1 000)
Svítivost (nits): 5 000
Hmotnost: 27 - 35 kg
Specifikace
| Item | Value | |
|---|---|---|
| Pixel Pitch(mm) |
4.8
|
|
| Pixel Density(pixels/㎡) |
43264
|
|
| Viewing Angle(Deg.) |
160(H)/160(V)
|
|
| Brightness(nits) |
5500
|
|
| Grey Level(bit) |
12/14/16
|
|
| Refresh Rate(Hz) |
1920/2880/3840
|
|
| Panel Size(mm) |
500(W)×750(H)×70(D)
|
500(W)×1000(H)×70(D)
|
| Panel Size(inch) |
19.68(W)×29.53(H)×2.75(D)
|
19.68(W)×39.37(H)×2.75(D)
|
| Panel Resolution(pixels) |
104 ×156
|
104 ×208
|
| Panel Weight(kg/㎡) |
27-35
|
|
| Panel Type and Material |
Iron
|
|
| Module Size(mm) |
250(W)×250(H)
|
|
| Module Size(inch) |
9.84(W)×9.84(H)
|
|
| Module Resolution(pixels) |
52×52
|
|
| Protection Grade |
IP65/54
|
|
| Serviceability |
Rear
|
|
| Avg.Power Consumption(W/㎡) |
153(AC)
|
|
| Max.Power Consumption(W/㎡) |
610(AC)
|
|
| Brightness Adjustment |
Manual/Auto/Programmable
|
|
| Operating Temp/Humidity(℃/%RH) |
-20~+50/10~90
|
|
| Storage Temp/Humidity(℃/%RH) |
-40~+60/0~90
|
|
| Lifetime(hours) |
50000
|
|
| Compliant Standard |
CE,FCC,RoHS
|
|
