FDU-3108

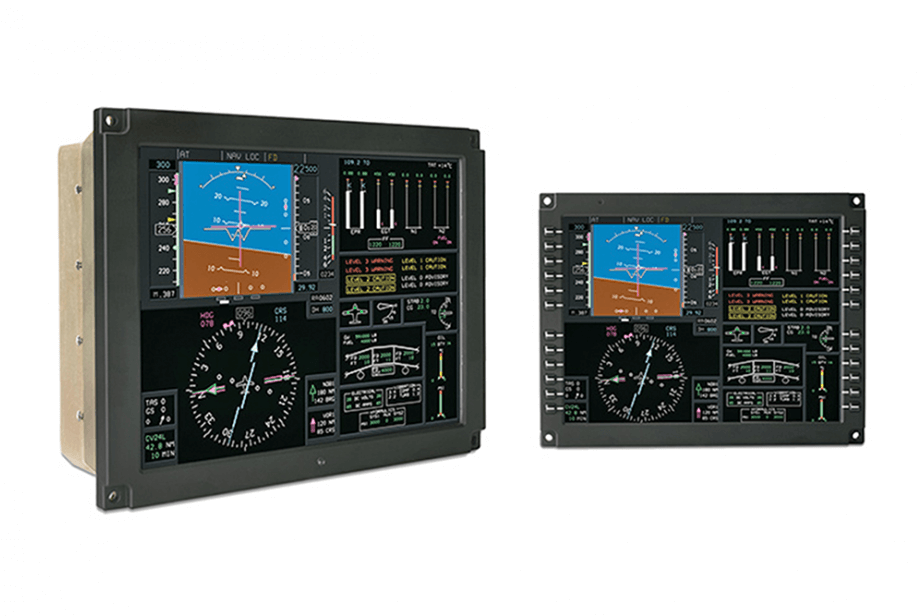

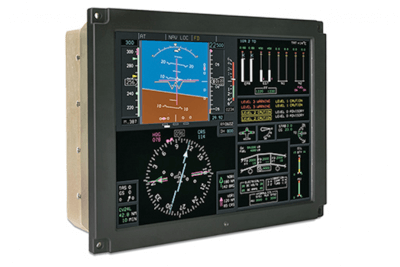

FDU-3108 12” (10” x 8”) Flight Display Unit for civil aviation.
Základní informace
- Best-in-class AMLCD for superior color rendering
- Very wide viewing angles – ideal for cross-cockpit viewability
- Guaranteed brightness and color range over the operating temperature of the display and over its lifetime
- Multiple video inputs
- Low weight <2.1 kg / 4.63 lbs
- Quiet by design, thanks to its fan-less architecture
The FDU-3108 is a 10x8 inch Flight Display Unit featuring multiple digital video inputs. Equipped with the latest, sunlight readable Active Matrix Liquid Crystal Display and LED backlight technology, the FDU-3108 provides high brightness and contrast along with excellent viewing angles in all directions. This allows the display to be mounted in front of the pilots and tilted horizontally in the pedestal, assuring perfect cross-cockpit vision.
All HW and SW have been developed according to DO-178 and DO-254 up to DAL A. Therefore this display is the ideal front end for PART23 and PART25 electronic flight instrument systems.
Specifikace
| ELECTRO-OPTICAL | |
|---|---|
| Panel type | Active matrix LCD (normally black) |
| Panel active area | 12" diagonal (10" x 8") |
| Panel resolution | 1024x768 (XGA) |
| Viewing angle | H: +/-55° V: +/-35° |
| Backlight | LED backlight |
| Luminance | 0.1 up to 150fL |
| Sunlight readability | Contrast ratio >14:1 @ 10,000 fC |
| INTERFACES | |
|---|---|
| Video inputs (1) | Dual video inputs are standard Default Inputs: 2x DVI-D Other video inputs possible (Arinc 818, HD-SDI, etc.) |
| Inputs/Outputs (1) | Video source/mode selection and BIT data retrieval via either RS-422 or A429 Discretes for display configuration, lighting mode selection, etc. ARINC 429 control, RS-232 maintenance interface |
| CONTROLS | |
|---|---|
| Brightness control (1) | ALS sensors, bezel control (optional), or remote |
| Bezel controls (1) | Available with custom bezels |
| Touch screen | Multi-touch capability through PCAP with built-in mechanisms for certifiable touch interface (optional) |
| GENERAL SPECIFICATIONS | |
|---|---|
| Power supply | 28VDC, MIL-STD-704A |
| Power consumption | <20W @ 150fL (20C ambient) |
| Weight | <2.1 kg / 4.63 lbs |
| Cooling | Passive cooling (no requirement for forced external cooling) - fan-less design |
| Orientation | Landscape or Portrait |
| Dimensions (WxHxD) (1) | 310mm (Width) x 226mm (Height) x 72.5 mm (Depth excl. connector flange) |
| Software | developed to RTCA/DO-178, capable of supporting DAL-A functions |
| Hardware | developed to RTCA/DO-254, capable of supporting DAL-A functions |
| ENVIRONMENTAL CONDITIONS | |
|---|---|
| Compliance | DO-160G |
| High temperature | +55C operational / +70C short-time / +85C ground survival |
| Low temperature | -15C operational / -40C short-time / -55C ground survival |
| Altitude | 50,000 ft |
