ATR 1/2 Short Air-Borne Mission Computer
Základní informace
7Starlake excels in designing unparalleled military computers for harsh environments. From polar regions to the desert, from jungle environments to high altitude, 7Starlake’s rugged computers have the capability to withstand the operational environment. Comply to MIL-STD standards exacting levels of conformity, 7Starlake products can operate at full capacity in extreme conditions. 7Starlake believes in meeting 100% of our customers’ expectations for the design, quality of build, and customer service levels in the supply of rugged and custom-built computer systems.
- MIL-STD 810 Thermal, shock, vibration,
- Humidity / EMI / EMC conditions
- 9th / 8th Gen Intel® Xeon® / Core ™ processor
- IP67 Chassis with D38999 connectors
- DDR4 up to 128GB
- Dual Redundant MIL-STD-1553 connections
- Dual ARINC 429 input connections
- Compliant with MIL-STD-810G/461D / 462D/ 464E/1474E/1686C/1472G
- MIL-STD-704A / MIL-STD-461/ MIL-STD-1275A 10V~33V DC-Input
- Extreme Temperature : -40 ~+60 degree
Specifikace
| CPU | Xeon E-2276ME (6 Cores/12 Threads, 12M Cache, up to 4.50 GHz), 45W Xeon E-2276ML (6 Cores/12 Threads, 12M Cache, up to 4.20 GHz), 25W |
| MEMORY TYPE | 16GB DDR4 2400MHz SO-DIMM (up to 128GB) ECC for Xeon SKU |
| Graphic | Intel® UHD Graphics 630 |
| ARINC 429 |
6 Channels of ARINC-419/429/575/717 |
| STA -1553 |
1-2 INDEPENDENT, |
| TPM |
TPM 2.0 (SLB9665) |
| BIOS |
AMI UEFI BIOS |
| Ethernet |
1 x Intel I210-IT |
| GPIO | 4x GPIO |
| COM | 3 x RS-232 |
| USB | 1 x USB2.0 |
| ETHERNET | 4 x GbE |
| POWER TYPE | 10V ~ 33V DC IN |
| STORAGE | 1 x2.5” SATA SSD, 1TB |
| OPERATING TEMPERATURE | -30 to +60 C |
| DIMENSION | ATR 1/2short 269.88mm(H) x 123.95mm(W) x318mm(L) |

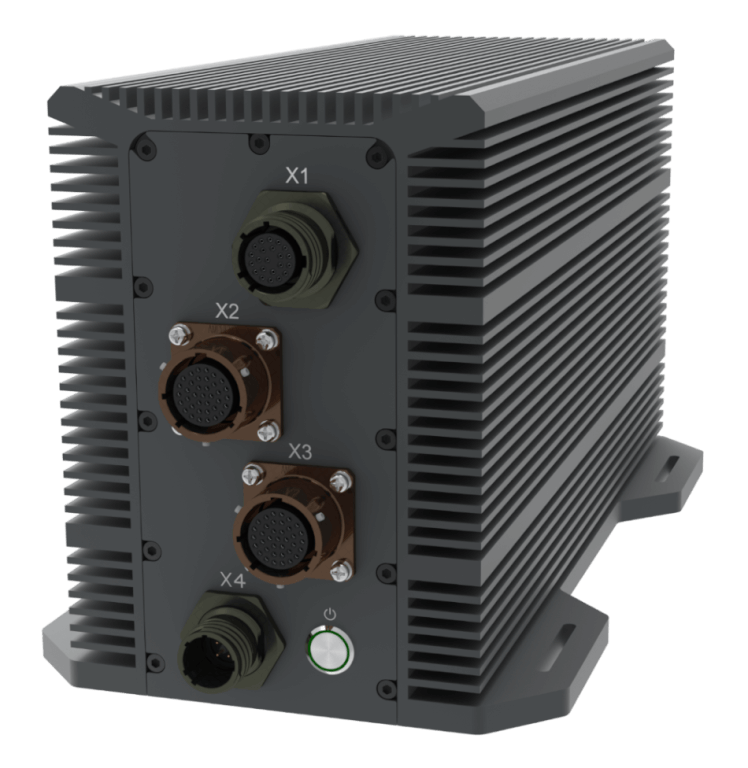

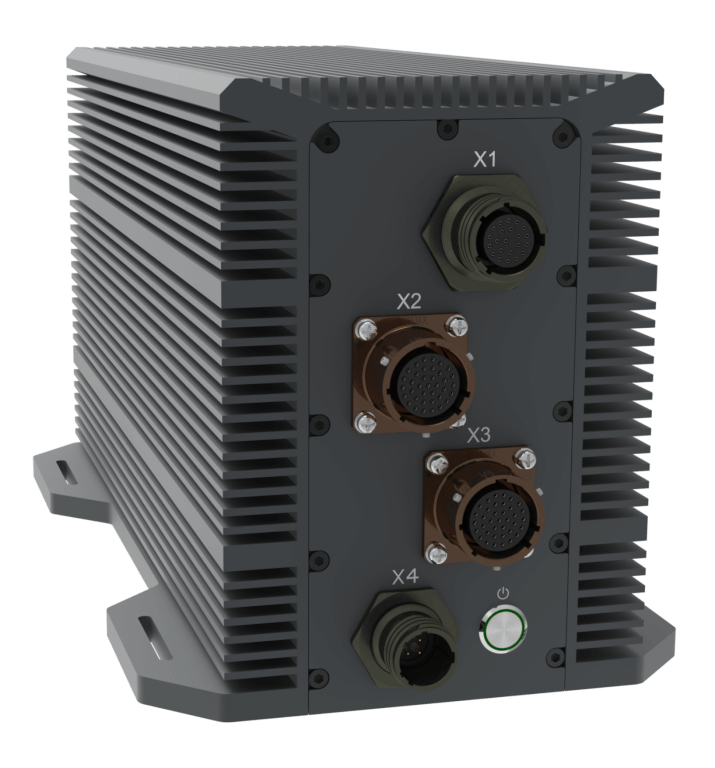

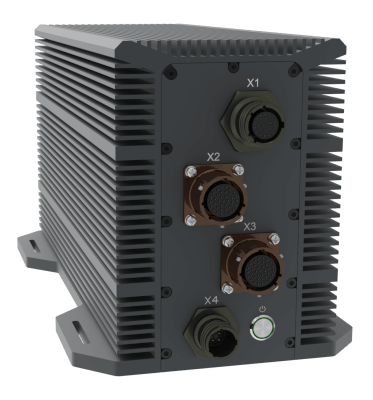

| FRONT I/O | 2 x LAN + 1 x USB2.0 with 22 PIN D38999 connector on X1 3 x RS232 with 37pin D38999 connector on X2 1 x ARINC429+1 x MIL-1553 + 4chan GPIO with 37pin D38999 connector on X3 DC IN with D38999 connector on X4 |
| ENVIROMENTAL STANDARDS |
MIL-STD-810G/461D / 462D/ 464E/1474E/1686C/1472G |
