TL-358/2
Lehký a tenký displej o velikosti 23" nabízí rozlišení Full HD (1 920 x 1 080).
Základní informace

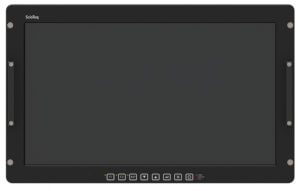

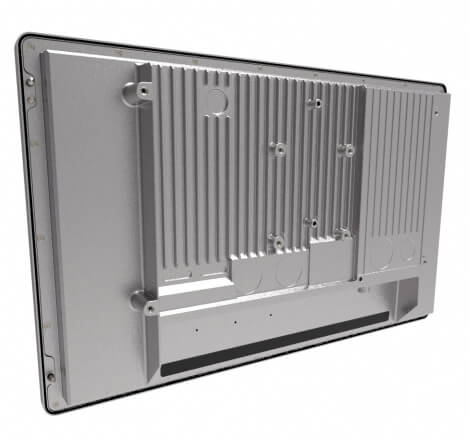

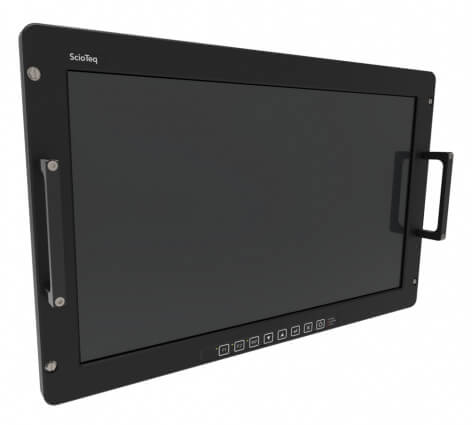

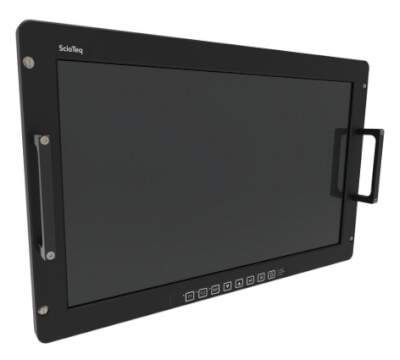

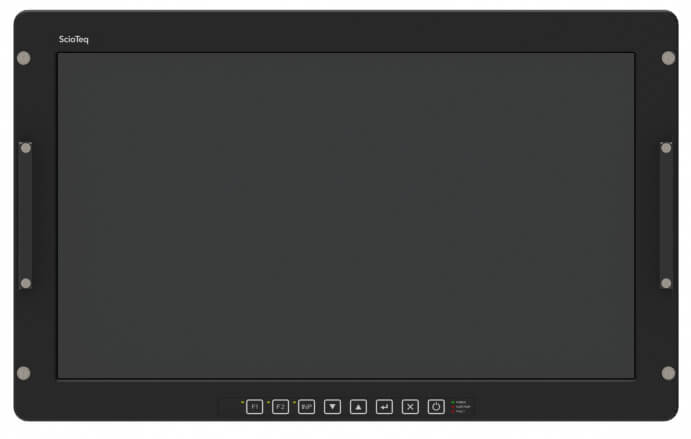

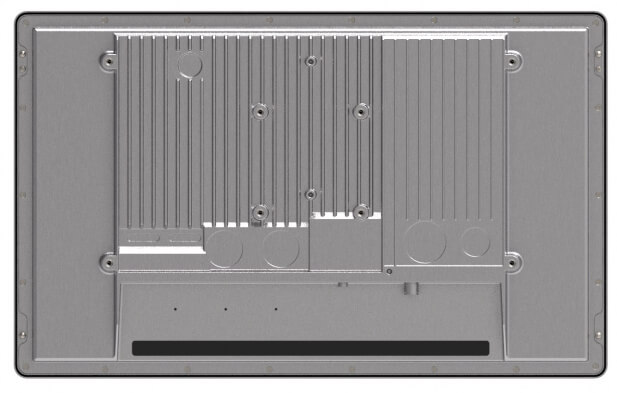

The TL-358/2 is a Ruggedized 23” FHD (1920 x 1080) Multi-purpose display
- Cost effectiveness
- Long life
- Low weight yet extremely rugged design
- Drop in replacement for TL-358
- Optional Touch Screen
- Optional LFC (LCD Flickering Compensation)
- Legacy I/O option
- Mission-critical operations in naval, ground army and unmanned environments
The TL-358/2 is ScioTeq's second-generation 23” thin and lightweight rugged display combining unmatched thinness with exceptionally low weight.
Next-generation technologies
ScioTeq's TL-358/2 offers a new generation upgrade solution for ScioTeq's TL-358. The updated model includes the latest innovations in electronics, inputs/outputs, video processing and PCAP multi-touch technology. The TL-358/2 features a first-class 23” full HD LCD with LED backlight, offering excellent performance in terms of brightness, crispness, dimming, contrast and viewing angle. Several mounting options and bezel configurations are available to address virtually any mounting need in any application. Additionally, the TL-358/2 combines this high level of performance and versatility with a very competitive price/performance value. ScioTeq's TL displays have been designed for application in the most extreme environments, making them suited for naval combat, army, UAV and airborne use.

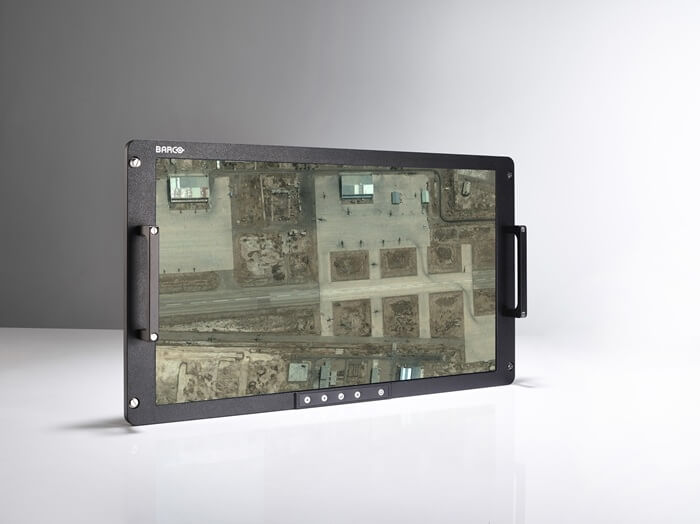

Previous names: Barco TL-358/2, Esterline Codis TL-358/2
Specifikace
| Panel type | Active Matrix LCD |
| Panel active area | 23 inch diagona |
| Resolution | 1920 x 1080 (FHD |
| Backlight | LED |
| Contrast ratio | 800:1 |
| Brightness | 250 cd/m² (72.5fL) typical |
| Signal Inputs | 2 x DVI, VGA, HD-SDI, RS-232 or RS-422, USB, Ethernet |
| Controls | OSD/web interface SNMP remote display control |
| Indicators | Green ‘Power’ LED, Red ‘Fault’ LED |
| OSD | On Screen Display & web interface |
| Power | 28 VDC or 115-220VAC per MIL-STD-704E and MIL-STD1275D guidelines |
| Power consumption | 40 W typical (without heating) |
| Weight | ± 10kg |
| Cooling | Passive |
| Finishing | Bezel color: Black RAL 9005 Surface treatment: ROHS compliant Chromated Cr3 (MIL-DTL-5541 type II Class 3 |
| Vibration | Ships MIL-STD-167-1 Type 1 Airborne 2g MIL-E-5400T Fig.2, curve IIa (sheet 2 of 3) Airborne 5g MIL-E-5400T Fig.2, curve IIIa (sheet 2 of 3) (option) Randome MIL-STD-810F, Meth 514.5 Proc I, comp. wheeled vehicle (C2 & C3) (option) |
| Shock | MIL-STD-810F Meth 516.5, 30g - 12,5ms MIL-S-901D,Lightweight, Grade A (option) |
| Operational temperature | Low temp: -10°C (immediate usable image at power up, image fully compliant with specs after 30 minutes) 0°C ~ +50°C -25°C ~ +55°C (option) |
| Storage temperature | -40°C ~ +70°C |
| Relative humidity | max. 95% @ 40°C |
| Drip proof | MIL-STD-810F, Meth 506.4 proc III |
| Altitude low pressure | 40.000ft (187 mbar) |
| Rapid decompression | MIL-STD-810F, Meth 500.4 Proc III, 8.000ft to 40.000ft in 15s (option) |
| EMI / EMC | MIL-STD-461F - Navy Applications MIL-STD-461F - Navy Applications / Navy fixed and Airforce Applications (option) |
| FCC | FCC-A |
| Ingress protection | IPx5 on display front IPx5 on unit level with optional circular MIL connectors |
