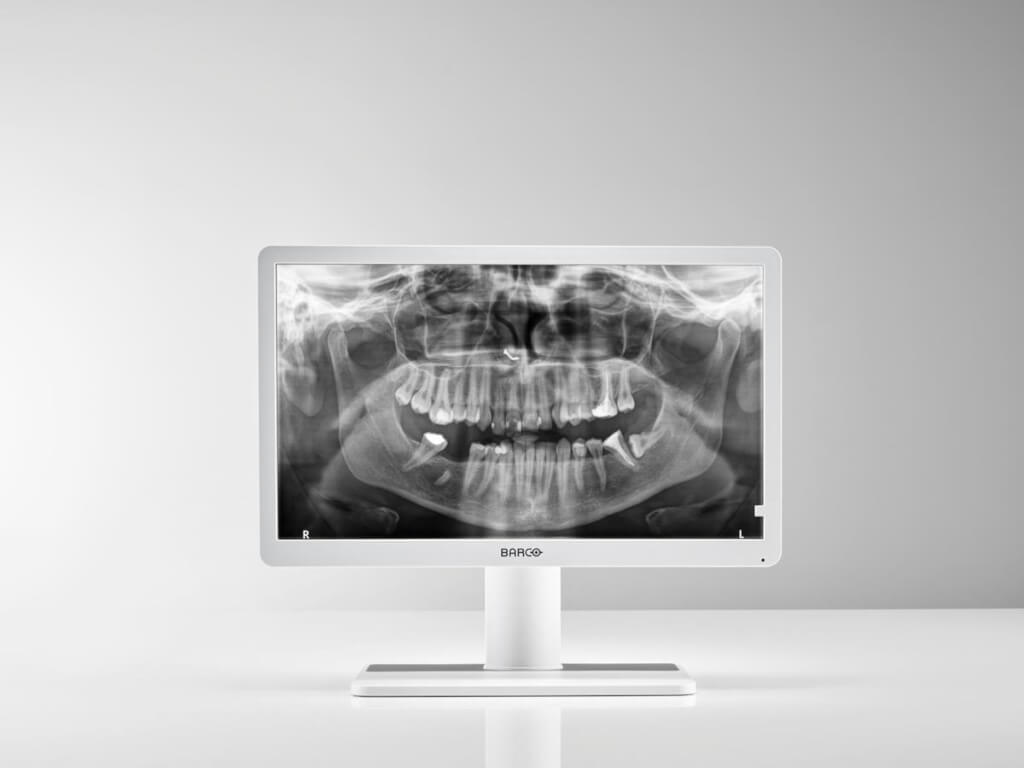

Eonis 22" MDRC-2222 WP Dental
White 22" dental display with cleanable design
Základní informace
The Eonis® dental display perfectly answers a series of needs that many dentists will recognize: an attractive, versatile design, excellent cleanability and bright, consistent image quality.
Fully cleanable and safe
Barco’s Eonis display has a protective front glass panel which you can clean with commonly used cleaning agents. The toughened glass ensures that the display is safe to use in a clinical environment.
Attractive, versatile and multi-purpose
Stylishly white with rounded corners, this display will perfectly blend into every dental practice. The multiple mounting options further add to the smart design: it can be used with a VESA stand, on the dentist’s desk, or mounted on a rotatable arm. Multiple connections are available, including extra inputs to show video content.
Consistent image quality
Eonis provides crisp, high-contrast images for fast and effective viewing of dental images. To guarantee image consistency at all times, it features a unique front sensor that automatically aligns image quality every time the display is turned on. Barco’s online MediCal QAWeb service further strengthens image consistency and allows you to easily personalize your image.
Specifikace
| Screen technology | LCD |
| Active screen size (diagonal) | 546 mm (21.5") |
| Active screen size (H x V) | 476 x 268 mm (18.7 x 10.5") |
| Aspect ratio (H:V) | 16:9 |
| Resolution | 2MP (1920 x 1080 pixels) |
| Pixel pitch | 0.248 mm |
| Color imaging | Yes |
| Gray imaging | Yes |
| Bit depth | 30 bit |
| Viewing angle (H, V) | 178° |
| Ambient light presets | Yes, reading room selection |
| Front sensor | Yes, Front Consistency Sensor |
| Maximum luminance (panel typical) | 300 cd/m² |
| DICOM calibrated luminance | 180 cd/m² |
| Contrast ratio (panel typical) | 1000:1 |
| Response time ((Tr + Tf)/2) (typical) | 7.5 ms |
| Housing color | RAL 9016 |
| Video input signals | 1x DVI-I 1x DisplayPort |
| USB ports | 1x USB 2.0 upstream (endpoint) 2x USB 2.0 downstream |
| Power rating | 100-240 Vac, 50-60 Hz, 0.6-0.4 A |
| Power consumption | 20 W (nominal) < 0.5 W (hibernate) < 0.5 W (standby) |
| Dimensions with stand (W x H x D) | Portrait: 337 x 525~602 x 201 mm Landscape: 514 x 388~498 x 201 mm |
| Dimensions w/o stand (W x H x D) | Portrait: 315 x 514 x 67 mm Landscape: 514 x 315 x 67 mm |
| Dimensions packaged (W x H x D) | 700 x 240 x 460 mm |
| Net weight with stand | 6.4 kg |
| Net weight w/o stand | 4.1 kg |
| Net weight packaged | 7.8 kg (without optional accessories) |
| Tilt | -5° to +22° |
| Pivot | 90° |
| Height adjustment range | 110 mm |
| Mounting standard | VESA (100 mm) |
| Screen protection | Protective, anti-glare glass cover |
| Recommended modalities | All digital images, except digital mammography |
| Certifications | CE (MDD 93/42/EEC; A1:2007/47/EC class I device) CE 2014/30/EU RoHS EN 60601-1-2 (2015) IEC 60950-1:2005 + A1:2009 + A2:2003 (2nd Edition) IEC 60601-1:2005 + C1:2006 + C2:2007 + A1:2012 ANSI/AAMI ES60601-1:A1:2012 + C1:2009/(R)2012 + A2:2010/(R)2012 CAN/CSA C22.2 No. 60601-1:2014 DEMKO EN 60601-1:2006 + A12:2014 + A1:2013 KC FCC class B ICES001 Level B FDA class I device |
| Supplied accessories | User guide System disc DisplayPort cable USB cable AC mains cable (depending on the region) |
| QA software | MediCal QAWeb |
| Warranty | 3 years |
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | -20 °C to 60 °C |
| Operating humidity | 8% to 85% (non-condensing) |
| Storage humidity | 5% to 95% (non-condensing) |
| Operating pressure | 70 kPa |
| Storage pressure | 50 to 106 kPa |
