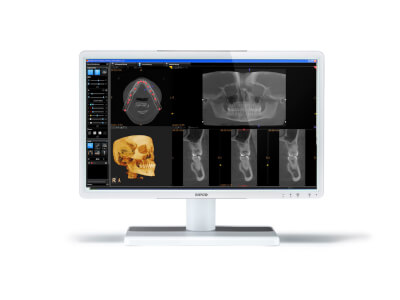

Eonis 22" (MDRC-2122 WP)
White 22" dental display with cleanable design
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Attractive, versatile design:
- Sleek, white display with rounded corners
- Flexible VESA mount for easy arm mounting
- Top connections for easy and secure connections
- Multiple inputs (HDMI, USB, etc.)
Safe for use in the dental practice:
- Exceptional cleanability with 70% alcohol based cleaning fluids
- Toughened, scratch-proof front glass
- Covered cables
- Medical-grade certifications
- Socket for Kensington lock
Consistent image quality:
- Front sensor automatically aligns image quality
- IPS panel ensures wide viewing angle
- MediCal QAWeb suite for quality assurance
The Eonis® dental display perfectly answers a series of needs that many dentists will recognize: an attractive, versatile design, excellent cleanability and bright, consistent image quality.
Fully cleanable and safe
Barco’s Eonis display has a protective front glass panel and is rated IP-32, making it exceptionally cleanable with commonly used cleaning agents. The toughened glass and an integrated cable management system ensure that the display is safe to use in a clinical environment.
Attractive, versatile and multi-purpose
Stylishly white with rounded corners and an integrated cable management system, this display will perfectly blend into every dental practice. The multiple mounting options further add to its smart design: it can be used with a VESA stand, on the dentist’s desk, or mounted on a rotatable arm. Multiple connections are available, including extra inputs to show video content.
Consistent image quality
Eonis provides crisp, high-contrast images for fast and effective viewing of dental images. To guarantee image consistency at all times, it features a unique front sensor that automatically aligns image quality every time the display is turned on. Barco’s online MediCal QAWeb service further strengthens image consistency and allows you to easily personalize your image.
Specifikace
| Screen technology | TFT Color LCD IPS |
| Active screen size (diagonal) | 21.5" (542mm)(diagonal) |
| 10.52” x 18.71” (267,3 mm x 475,2 mm)(HxV) | |
| Backlight | LED |
| Aspect ratio | 16:09 |
| Resolution | 2MP (1920 x 1080) |
| Pixel pitch | 0.2475 |
| Color imaging | Yes |
| Gray imaging | Yes |
| Color support | 10 bit |
| Viewing angle | 178° (IPS) |
| Ambient Light Compensation (ALC) | Yes, preset values in OSD |
| Front sensor | Yes |
| Maximum luminance | 250 cd/m² |
| DICOM calibrated luminance | 180 cd/m² |
| Contrast ratio | 1000:1 typical |
| Response time (Tr + Tf) | 14 ms |
| Housing color | White + Silver |
| Video input signals | VGA, DisplayPort, HDMI |
| USB ports | 1 upstream, 2 downstream |
| USB standard | 2.0 |
| Power requirements (nominal) | 100-240 V |
| Power consumption (nominal) | 40 W (<0,5 W in stand-by) |
| Power save mode | Yes |
| Power management | DPMS |
| Dot clock | 165 MHz |
| OSD languages | English, French, German, Spanish, Italian, Dutch, Japanese, Traditional Chinese, Simplified Chinese, Korean |
| Dimensions with stand (W x H x D) | 507 x 377–457x 166 mm |
| Dimensions w/o stand (W x H x D) | 507 x 306 x 57 mm |
| Dimensions packaged (W x H x D) | 610 x 505 x 230 mm |
| Net weight with stand | 6.7 kg |
| Net weight w/o stand | 4.3 kg |
| Net weight packaged with stand | 10.1 kg |
| Height adjustment range | 80 mm |
| Tilt | 0° / +20° |
| Swivel | -30° / +30° |
| Pivot | N/A |
| Mounting standard | VESA (75 mm) |
| Screen protection | Protective, non-reflective glass cover |
| IP rating | IP32 |
| Certifications | CE (MDD 93/42/EEC class I product), CE - 2004/ 108/EC, IEC 60950-1:2005 + A1:2009 (2ND EDITION), IEC 60601-1 2ND ED:1988 + A1:1991 + A2:1995, UL 60601-1 1ST EDITION, CAN/CSA-C22.2 NO. 601.1-M90:2005, IEC 60601-1:2005 + A1:2012, ANSI/AAMI ES 60601-1:2005 + C1:2009 + A1:2012, CAN/CSAC22.2 No. 60601-1-08:2008, DEMKO - EN 60601- 1:2006, EN 60601-1-2:2007, CCC - GB9254-2008 + GB4943-2001 + GB17625.1-2003, KC, VCCI, FCC class B, ICES-001 Level B, FDA Class I device, RoHS |
| Supplied accessories | User Guide |
| Cable routing strap | |
| Video cables (1 x VGA + 1 x HDMI) | |
| Main cables (UK, European (CEBEC/KEMA) or USA (UL/ CSA; adaptor plug NEMA 5-15P) or Chinese (CCC)) | |
| USB 2.0 cable | |
| External power supply (model: BridgePower Corp. BPM060S12F15; Input: 100-240 V AC, 50-60 Hz, 1.5 A; Output: +12V DC, 5.0 A) | |
| QA software | QAWeb Enterprise & QAWeb Private Practice |
| Warranty | 3 years |
| Operating temperature | +10°C / +40°C |
| Storage temperature | -20°C / +60°C |
| Operating humidity | 30% - 75% (non-condensing) |
| Storage humidity | 5% - 85% (non-condensing) |
| Operating altitude | 2000 m |
| Storage altitude | 7500 m |
| Operating pressure | 70 kPa - 106 kPa |
| Storage pressure | 50 kPa - 106 kPa |
