EN236A

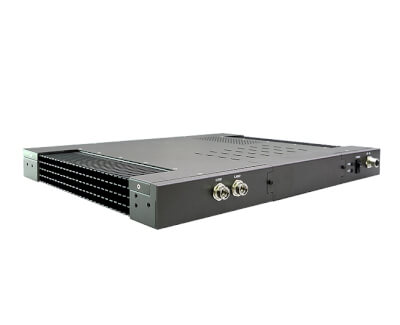

1U Rackmount Fanless System with 3rd Gen. Intel® Core™ Processor, EN50155 Certified, 33.6V to 62.4V DC-in, Smart UPS, Extended Temp. -40~70°C
Základní informace
- ntel® Ivy Bridge Processor BGA Type i7
- 1 x DDR3 SO-DIMM up to 8 GB
- 2 x 2.5" SATA III Storage
- Dual GbE LAN ports (M12 connector)
- 2x USB2.0, 1 x VGA
- 33.6V~62.4V DC-in
- Extended Temperature -40 to 70°C
- EN50155 compliant
EN236A is 19" 1U Rack-mount Fanless rugged System, suitable for application such as railway, high-end automation etc. Powered by Intel® Ivy Bridge i7 CPU and HM76 chipset, the BGA type CPU i7-3517UE with dual cores performance has only 17W power consumption. The fanless design ensures silent operation and eliminates the possibility of gathering dust and external debris inflow which may cause system failure over time. EN236A integrates wide range DC input from 33.6V to 62.4V with extended temperature operation up to +70°C without CPU throttling. Moreover, being EN50155-certified, EN236A possesses high performance under various power supply conditions, especially in rolling stock equipment and railway application.
Specifikace
| CPU | Intel® Ivy Bridge 22nm Core™ i7/i5/i3, BGA type Intel® Core™ i7-3517UE (2C x 1.7 GHZ), 4M L2 cache (17W) Intel® Core™ i5-3610ME (2C x 2.7 GHZ), 3M L2 cache (35W) Intel® Core™ i3-3217UE (2C x 1.66 GHZ), 3M L2 cache (17W) |
| Chipset | Intel® HM76 Express Chipset (Intel® BD82HM76 PCH) Intel® QM77 Express Chipset (Intel® BD82QM77 PCH) by request |
| Power System | EN50155 standard 48V solution (33.V to 62.4V DC in) OpenUPS Uninterruptible Power Supply Board CYCLON Battery Set supply 10V 2.5A for 1 hour |
| Memory type | 1 x 204-pin SO-DIMM DDR3 1333/1600 MHz up to 8GB |
| Expansion Slot | 1 x Mini PCIe |
| Storage Device | 2 x 2.5" SATA HDD/SSD (Easy Swap 2.5" HDD cage) |
| Power Button | 1 |
| LED Indicator | 1 x Power LED 1 x HDD LED |
| Ethernet | 2 x M12 Connectors Extended from Front Window |
| Power Input | 1 x M12 Power Connectors |
| VGA | 1 x 15-pin VGA connector (female) |
| Ethernet | Intel® 82579LM & 82574IT GbE LAN (support 10/100/1000 Mbps for x2 RJ45 ports) |
| COM | 1 x RS232/422/485 with 5V/12V selectable |
| USB | 2 x USB 3.0 |
| 2.5" HDD/SSD Tray | 2 |
| GND Screw | 1 |
| Windows | Windows 7 32 bit, Windows 7 64 bit |
| Linux | Fedora 20, Ubyntu 13.10, Ubuntu 14.04 |
| Power Requirement | 33.6V to 62.4V DC-in |
| Dimension | 440 x 44 x 360 mm (17.32" x 1.73" x 14.17") |
| Weight | 7.90 kg (17.4 lbs) |
| Operating Temp. | -40 to 70°C (ambient with air flow) |
| Storage Temp. | -40 to 85°C |
| Relative Humidity | 10% to 95%, non-condensing |
| EMC | CE, FCC Class A |
| Railway | EN50155 Compliant |
