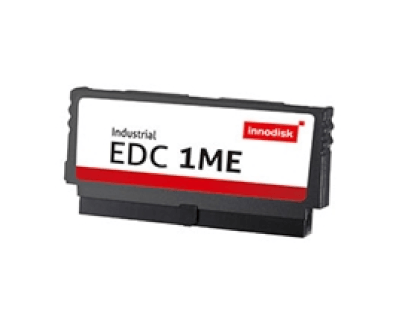

EDC 1ME Vertical
The Innodisk Embedded DISK CARD 1ME (EDC 1ME) products provide high capacity solid-state flash memory that electrically complies with the Personal Computer Memory Card International Association ATA standard.
Základní informace
- iSMART disk health monitoring
- Intelligent error recovery system
- Excellent data transfer speed
- Write protection security
- Enhanced power cycling management
The Innodisk Embedded DISK CARD 1ME (EDC 1ME) products provide high capacity solid-state flash memory that electrically complies with the Personal Computer Memory Card International Association ATA standard. InnoDisk Embedded DISK CARD 1ME (EDC 1ME) is embedded solid-state data storage systems for industrial work place. Embedded DISK CARD 1ME (EDC 1ME) features an extremely light weight, reliable, low-profile form factor.
Embedded DISK CARD 1ME (EDC 1ME) supports advanced PIO (0-6), Multi Word DMA (0-4), Ultra DMA (0-6) transfer modes, multi-sector transfers, and LBA addressing
Specifikace
| Model Name | EDC 1ME Vertical |
| Interface | PATA |
| Flash Type | MLC |
| Type | Vertical |
| Capacity | 8GB~128GB |
| Max. Channels | 2 |
| Sequential R/W (MB/sec, max.) | 110/75 |
| Max. Power Consumption | 0.76W(3.3V x 230mA) |
| H/W Write Protect | Optional |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 50.3 x 27.3 x 5.8 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
Ke stažení
