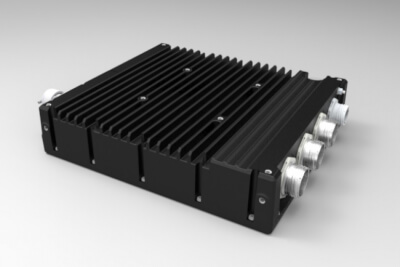

DPM-Ve
Embedded computer with a 6th Generation Intel® Quad-CoreTM i7 CPU
Základní informace
ScioTeq's DPM-Ve rugged display processing module provides high-performance data visualization processing in a compact footprint. Because of design for SWaP-C and modular open architecture, the DPM-Ve is an ideal solution for vehicle mounted C4ISR applications.
Extreme Performance
ScioTeq's DPM-Ve rugged display processing module provides the highest performance possible in an embedded computer with a 6th Generation Intel® Quad-CoreTM i7 CPU, packaged to deliver optimal performance while operating in harsh environments.
Modular Design
The DPM-Ve includes 6 expansion slots based on open industry standards. This modularity allows customized IO configurations and dedicated hardware controllers to support multiple security domains.
Advanced Virtualization and Platform Protection
Featuring Intel® Virtualization (VT-x, VT-d, vPro), Intel® Trusted Execution Technologies (TxT), and a Trusted Platform Module (TPM); the DPM-Ve offers a perfect solution for platforms requiring Information Assurance.
Specifikace
| Computing | Intel® Quad Core™ I7-6822EQ, 4 x 2.0 GHz |
| RAM | Up to 16 GB DDR3 SODIMM |
| Graphics card | Intel® HD Graphics 530 |
| Inputs / outputs | 2x Intel PRO1000 Gigabit Ethernet port 4x USB 2.0 or 3.0 4x isolated serial lines (RS232/RS422/485) 2x isolated CAN bus, J1939 and CAN 2.0B compliant HD audio in/out/micro 4x isolated video inputs RS170, PAL/NTSC |
| Option slots | 1x MXM 1x XMC or M.2 miniPCIe 4x miniPCIe 1x M.2 miniSATA |
| Operating system | No Operating System installed |
| Power supply | 28VDC nominal, MIL-STD-1275E compliant |
| Power consumption | 40W nominal, 80W maximum (without heaters) |
| Dimensions | 305 x 217 x 76 mm / 12.00 x 8.50 x 3.00 inches (w x d x h) |
| Weight | 5 kg / 11 lbs |
| ENVIRONMENTAL | MIL-STD-810G |
| Operating temperature | -46 to +65 °C |
| Storage temperature | -51 to +71 °C |
| Humidity | 95 percent, 60° C |
| Altitude | 40,000 feet operating, 50,000 feet non-operating |
| Salt fog | 48 hours, 5 percent concentration |
| Sand and dust | blowing sand/dust |
| Ingress protection | 1 meter immersion for 30 minutes |
| Vibration | Tracked Vehicle profile |
| Shock | 40g, 23ms (6 shocks/axis) |
| EMI / EMC | MIL-STD-461F Ground army |
