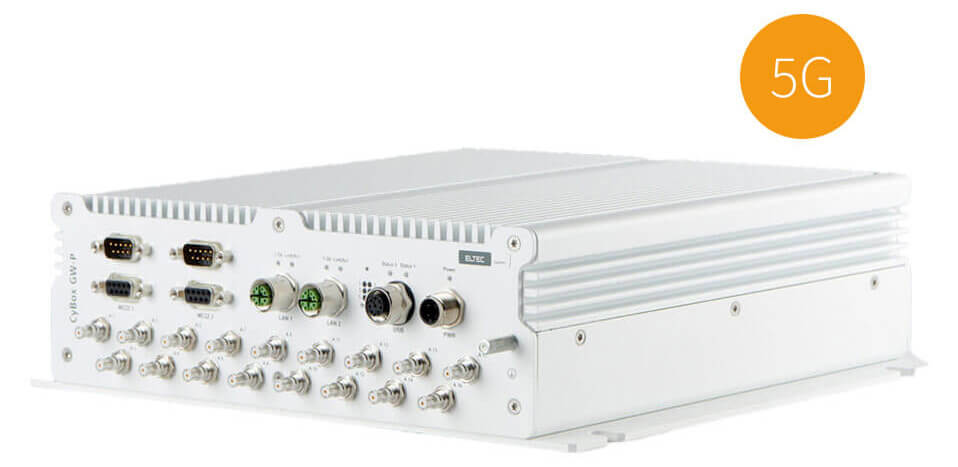

CYBOX GW 2-P

• Up to two 5G interfaces for channel-bundled WAN access
• Up to 4 SIM cards for each 5G interface
• Optional Wave 2 interface with 4x4 MU-MIMO with up to 1733 Mbps
• Dual 1 Gigabit Ethernet on M12 X-coded connectors
• Simultaneous Wi-Fi operation on 2.4 GHz and 5 GHz bands
• Up to 2 sockets for expansions (CAN, MVB, RS232 and more)
• Optional internal SSD storage up to 960 GB
• Ultra-wide-range power supply 24 to 110 VDC
• Integrated GNSS
• Built-in cyber security
• Maintenance-free design
• -40 °C to +70 °C operating temperature
• EN 50155 compliant

HIGH-END WIRELESS COMMUNICATION

The CyBox GW 2-P is a robust wireless communication gateway for railway applications. It offers stable, secure, and broadband 5G/LTE connections for trainto-ground communication and high-speed internet. The device hosts multiple 5G/LTE interfaces for parallel channel use and thus maximized throughput, multiple Wi-Fi interfaces to connect to client devices such as mobile phones, as well as dual Gigabit Ethernet ports to attach the device to a backbone network. Country-specific 5G/LTE/Wi-Fi standards are adopted for worldwide use in every type of train.

MULTIPLE RADIOS

There is mounting space for up to 4 radio modules within the CyBox GW 2-P. Each 5G/LTE module can be provided with up to four SIM cards for an optimal net coverage and maximum provider flexibility. The Wi-Fi interfaces allow for connecting clients at high data rates on each interface. The gateway can be equipped with either two 11ac modules or one Wave 2 module with multi-user MIMO (MU-MIMO) support to boost network efficiency and maximize data throughput.

MEDIA SERVER

To enhance the CyBox GW 2-P media server capabilities with internal storage, mounting space for a M.2 solid state drive is supplied. It is attached to the CPU’s dedicated SATA port and can be used for streaming local, on-vehicle video and audio data.

USER-INTERFACE AND SECURITY FEATURES

The CyBox GW 2-P firmware provides a convenient management interface via a web service. Besides global setup parameters the open source software OpenWrt allows the configuration of the radio interfaces, including provider information and the login dialog, as well as the setup of the stateful firewall. The access point and router configurations as well as the management firmware can be updated remotely. Furthermore the built-in fully configurable stateful firewall and multiVPN support with hardware-accelerated encryption ensures communication security.
