CP6930
6U 4HP CPCI and VME 10GbE Switch, PICMG 2.16 and VITA 31.1 compliant
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail

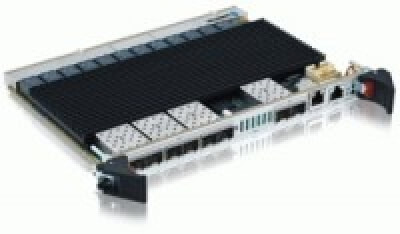

Flexi-Switch - State-of-the-art CompactPCI/VME PICMG 2.16 VITA 31.1 Switch
The new Kontron CP6930 is a 6U hot-swappable CPCI and VITA 31 switch with 26 GbE ports and 6 high performance uplinks (10 GbE). The CP6930 provides built-in switching capacity for CompactPCI and VITA 31.1 installations at an unsurpassed price/performance ratio by implementing the latest switching technology. It applies to VoIP installations such as Call Servers, MediaGateways and Trunking Gateways in wireline and wireless networks, as well as VoIP systems in enterprise networks with high demands on performance.
The new Kontron CP6930 is a 6U hot-swappable CPCI and VITA 31 switch with 26 GbE ports and 6 high performance uplinks (10 GbE). The CP6930 provides built-in switching capacity for CompactPCI and VITA 31.1 installations at an unsurpassed price/performance ratio by implementing the latest switching technology. It applies to VoIP installations such as Call Servers, MediaGateways and Trunking Gateways in wireline and wireless networks, as well as VoIP systems in enterprise networks with high demands on performance.
Features
| Additional | Forced Air Cooled | |
| Connection | PICMG2.16 | |
| Dimensions (H x W x D) | 6U / 4HP | |
| Ethernet/Bridging Protocols | Include VLANs (802.1Q), Link Aggregation (802.3ad), Spanning Tree (802.1D, 802.1w),QoS(802.1p), Flow Control (802.3x), GVRP, GMRP | |
| Function | Managed Switch / Router | |
| Operation Temperature | 0°C to 60°C | |
| Ports | 24x GbE acc. PICMG2.16, 2x SFP, 6x SFP+, serial/Eth management | |
| Power Consumption | max. 75W | |
| Routing Protocols | Include OSPFv2, RIPv2, VRRP, IGMP Snooping, DiffServ, ARP, ICMP |
