CP6925

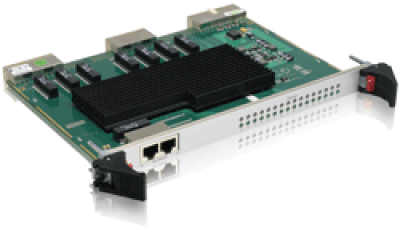

16 Port 6U CPCI unmanaged Gigabit Ethernet Switch Cost optimized unmanaged solution 14x Port Gigabit to Rear + 2x Port Gigabit to Front Auto-negotiation Three speed operations: 10/100/1000 Mbit/s Compliant to PICMG 2.16
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail
Robust cost-effective Ethernet switch
The CP6925 can be used in applications where several CPU boards are configured into segments in a 19-inch rack system or where a central processor system supervises several distributed controllers. Providing ports to the J3 and J5 CompactPCI connectors allows the board to be used in PICMG 2.16 applications. Supporting non-PICMG 2.16 systems as well, these ports can be routed to an appropriate rear transition module to enable rear access.
Vlastnosti
The CP6925 can be used in applications where several CPU boards are configured into segments in a 19-inch rack system or where a central processor system supervises several distributed controllers. Providing ports to the J3 and J5 CompactPCI connectors allows the board to be used in PICMG 2.16 applications. Supporting non-PICMG 2.16 systems as well, these ports can be routed to an appropriate rear transition module to enable rear access.
Vlastnosti
| Connection | PICMG 2.16 |
| Dimensions (H x W x D) | 6 U / 4HP |
| Ethernet/Bridging Protocols | - |
| Function | unmanaged |
| Operation Temperature | 0°C to 55°C |
| Ports | 16x GbE; 14 rear and 2 front; PICMG2.16 |
| Power Consumption | max. 21 Watt |
| Routing Protocols | - |
