CP303
Mobile Pentium III-M 512KB L2 Cache up to 800MHz Low Voltage Mobile Pentium III-M / microBGA up to 800MHz Up to 512 MByte SDRAM, 256MB soldered + one SODIMM socket 815 chipset internal or external AGPx4-VGA Two fast ethernet channels Two serial cha
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail

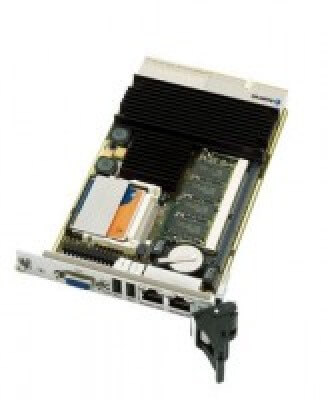

Build around the Intel Mobile Pentium III low voltage processor with additional controllers for network, graphic and storage transfers, the CP303 combines outstanding performance with versatility of operation.
The rugged design supports extended temperatures, -40C to +85C.
Vlastnosti
| CPU | Mobile Pentium®III-M up to 800 MHz |
| DRAM | 512 MByte (256 MByte soldered + 256 MByte via SO-DIMM socket) |
| Chipset | Intel® 82815GMCH and 82801 ICH2 |
| 4HP Version | 2x Ethernet; 2x USB, LEDs, CRT or COM1 |
| 8HP Version | COM 1/2, PS/2, Reset |
| CPU L2 Cache | 512 kByte |
| DRAM speed | 133 MHz |
| Ethernet | 2x 10/100Base-Tx |
| Flash Disk | CompactFlash socket |
| Graphics | I82815 internal |
| Power Consumption | 14W / 800MHz |
| Rear I/O | Optional |
