CP-RIO6-001
4HP Rear I/O interface for a 6U Compact PCI CP6001 card Single slot (4HP) Header connectors for SATA, USB2.0, 2x Fans, 1xRS232, 1x RS422 2.5" SATA HDD (option) USB Flash Support Rear panel connectors for 2x Ethernet, DVI-D/HDMI, 2x USB
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail

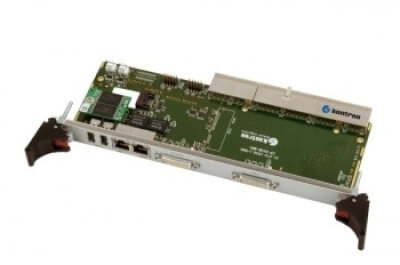

The CP-RIO6-001 is a 4HP Rear I/O interface for a CP6001 Compact PCI card complying to Kontron's proprietary RTM pinout rev 1.11. This RTM unit will provide USB, Ethernet, serial, DVI-D/HDMI, USB Flash, and SATA connection as well as the option to place a SATA 2.5' HDD.
Vlastnosti
Vlastnosti
| Additional | Speaker, Fan on headers |
| Ethernet | 2x GbE (RJ45) at rear panel |
| Flash Disk | USB Flash connector |
| Hard Disk | 2x SATA channels, optionally 2.5 disk on board |
| Keyboard | n/a |
| Mouse | n/a |
| SATA | 2x SATA connectors |
| Serial | 1x RS232, 1x RS422 on headers |
| Temperature/Humidity | 0-60°C, 93% rel. humidity |
| USB | 2x type A connector on rear panel, 1x USB flash connector |
| Video Output | 1x DVI-D/HDMI & 1x DVI-D |
