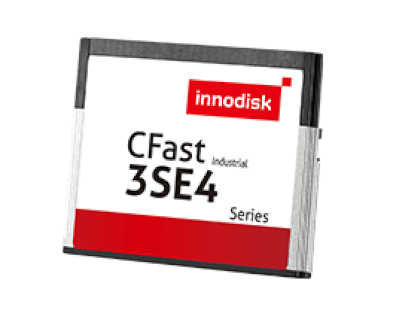

CFast 3SE4
SATA III solution for industrial field
Základní informace
- Excellent performance
- Long life span
- Designed with LDPC ECC engine
- DRAM-less, 100% data integrity
- Supports TRIM/NCQ/SMART
- Built in iData Guard
Innodisk CFast 3SE4, featured as small form factor, can be configured as a boot device or data storage and is suitable for most industrial application. With SLC NAND Flash and LDPC ECC, CFast 3SE4 provide high performance and prolong lifespan with exceptional reliability. Supported with hardware write protection, CFast 3SE4 can prevent valuable data on a device from modification and deletion.
Innodisk CFast 3SE4 is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.
Specifikace
| Model Name | CFast 3SE4 |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | SLC |
| Capacity | 8GB~64GB |
| Max. Channels | 2 |
| Sequential R/W (MB/sec, max.) | 520/360 |
| Max. Power Consumption | 1W |
| Thermal Sensor | ST- Optional / WT- Default |
| H/W Write Protect | Optional |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 42.8 x 36.4 x 3.6 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
