Základní informace
- InnoREC soultion for surveillance application
- Exclusive REC line for video recording ensures steady performance without any frame-loss
- Built-in thermal sensor
- Support S.M.A.R.T, TRIM, NCQ and iData Guard

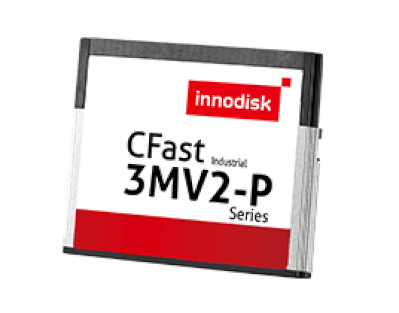

InnoREC is innodisk’s proprietary flash feature set designed specifically for surveillance applications. Through the smart integration of firmware and hardware, the speed and performance required by modern surveillance solutions is fully met. Innodisk CFast 3MV2-P is SATA III 6Gb/s flash based disk, which delivers excellent performance, especially in random data transfer rate, and which offers reliability making it the ideal solution for a variety of applications, including surveillance system, embedded system and industrial computing.
Innodisk CFast 3MV2-P supports several standard features, including REC line, TRIM, NCQ, and S.M.A.R.T. Innodisk’s exclusive REC line is ideal for video recording. With steady performance, no need to worry about any frame-loss. CFast 3MV2-P not only performs unmatched performance, but also designed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability.
Specifikace
Model Name | CFast 3MV2-P |
Interface | SATA III 6.0 Gb/s |
Flash Type | MLC |
Capacity | 32GB~256GB |
Max. Channels | 4 |
Sequential R/W (MB/sec, max.) | 560/350 |
Max. Power Consumption | 2.5W(3.3V x 760 mA) |
Thermal Sensor | ST- Optional / WT- Default |
H/W Write Protect | Optional |
ATA Security | Y |
S.M.A.R.T. | Y |
Dimension (WxLxH/mm) | 42.8 x 36.4 x 3.6 |
Vibration | 20G@7~2000Hz |
Shock | 1500G@0.5ms |
MTBF | >3 million hours |
Storage Temperature | -55°C ~ +95°C |
Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
