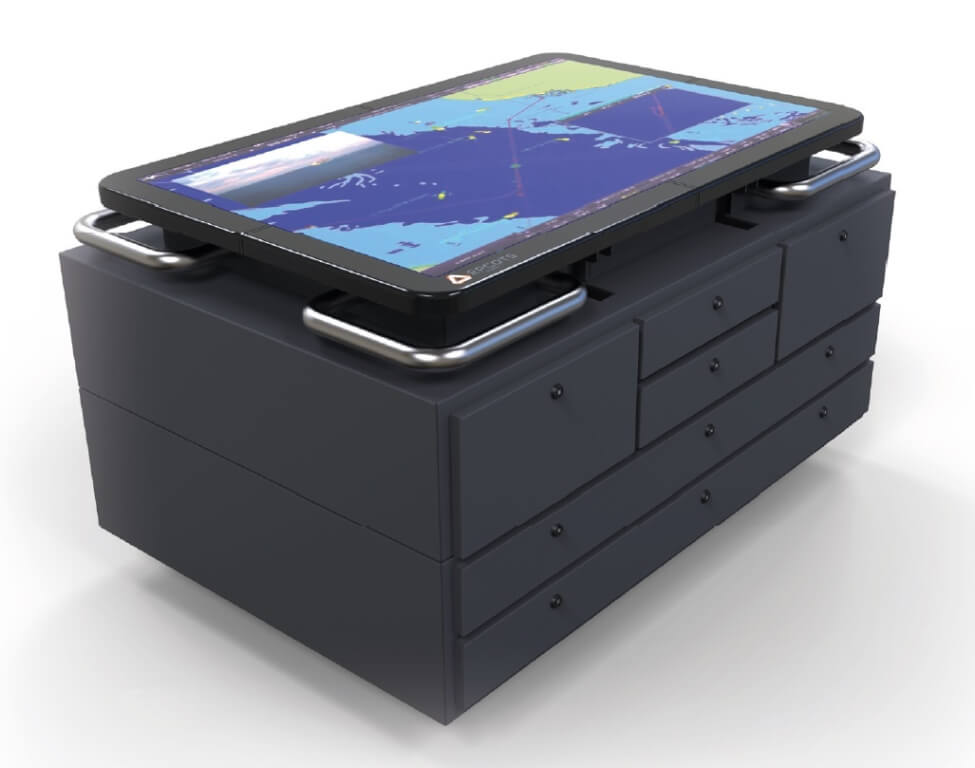

C-CAP LC 55

PHYSICAL FEATURES

• Dimensions (H,L,P): 1600x1070x907 mm
• Weight: ~250 Kg

TOUCHSCREEN

• Resolution: 1920*1080 (HD), 4K (optional)
• Display size: 32’’, 40’’, 46’’, 55’’
• Touch sensor : Projected Capacitive (gloves use compliant)
• Multitouch : up to 32 points.
• Typical product availability: 8 to 10 years
• High Quality TFT LCD (high contrast ratio and luminance)
• Luminance : up to 1000 cd/m² (Sunlight readability enhancement)
• Viewing angle: 178°/178°
• Dimming, ON/OFF, OSD access on weatherproof membrane

ENVIRONMENTAL CHARACTERISTICS

• Shock: MIL STD 810 (20/11 ms 1/2 sinus) operating
• EMI: MIL STD 461 (CE101, CE102, CS101, CS114, CS115, CS116)
• Temperature: MIL STD 810 (-15° to + 55 °C operating, -20 to 70°C storage)

OPTIONS

• Configurable computer box
• Gas-spring-assisted system to raise/lower the display with positive retention in both position
• Backlit keyboard Trackball and/or joystick
• Color customizable
