Visona

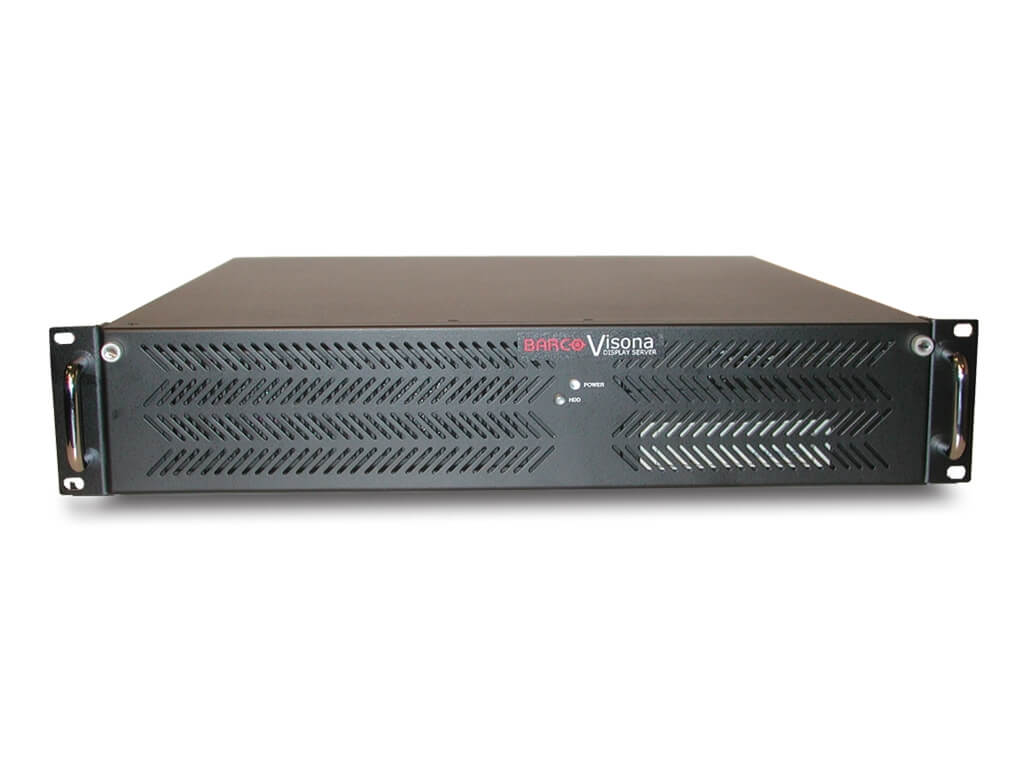

Barco's VISONA display server is a proven graphics visualization component that allows application programs running on any computer anywhere in a network to display visual information on high-resolution displays. The VISONA server acts as a networked graphics device that translates X11 protocol into video for up to 4 display devices, while interfacing with local input devices. VISONA eliminates the need for graphics generation on the application computer, thus increasing overall performance and allowing more advanced system architectures. Features Low-cost remote connection to an application processor using a single, point-to-point 10/100BaseT connection or connection to a high-speed router. Designed for use in ATC with high MTBF, maintenance functions, fast boot-time, etc. No rotating media used Drives up to four analog and/or digital displays Supports TELLAR display recording with either local or network archiving Uses open interface standards (network, X11 protocol, etc) for platform and OS independence

Software Single X11R6.6 server supporting all graphics outputs Fast boot (time from power-on to full operation <75s) BITE with full SNMP support Network agents (both secure and non-secure) Multi-layer graphics support for transparent windows Anti-aliased line drawing (hardware assisted) Flexible configuration for multi-display cursor travel User configuration by external plug-in flash card X extension for Sony DDM or Barco ISISTM display health and adjustment X Input extension Optional support for Barco’s TELLARTM display recording software Optional Barco Orthogon ODS TOOLBOX® Window Manager Hardware 2U 19-inch rack mount, 19-inch deep, optional rack slides, also for desktop usage PFC corrected power supply with 90 - 240 VAC Mains PS/2 or USB interfaces USB 2.0 interfaces for optional peripherals Configuration flash card storage capacity minimum 128 MB Local system memory 512 MB (optional 1 GB) 10/100BaseT Ethernet RS-232 with DB-9 for connection to ISISTM/Sony BITE interface Optional plug-in 8-port RS-232 box Optional additional 2 Ethernet ports, 10/100/1000BaseT Optional hot removable hard disk, 80GB Environmental Operating Temperature +10°C to +40°C Storage: -20°C to +60°C Relative Humidity, operating & storage: 10–85 % RH noncondensing EMC/EMI FCC Class A Volume II part 15 subpart J EN55022 limit A Immunity: EN50082-1 Safety CE2001 IEC950 (+ CB Certification) UL1950 cUL950 Workmanship according to ANSI/IPC A-610A level II MTBF calculated: > 60,000 hours Acoustic noise: <45 dBA --------------------------------------------------------------------------------
