LED displeje řady V jsou speciálně navrženy pro pevné instalace v brandingu, v prostředí out-of-home digitálních médií a ve sportu. Displeje řady V lze pořídit za velmi výhodnou cenu, přitom si zachovávají vysoký výkon a spolehlivost.
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail
The V series LED displays are specifically designed for fixed installations in branding, digital out-of-home (advertising) and sports. They come at an attractive price without compromising on performance and reliability.
Flexible scaling
Building on Barco’s experience with high-end LED technology, the V series is supported by the DV-100 image processor with high-class Athena™ scaler for flexible scaling. Next to supporting standard inputs up to (dual) HD-SDI, the V series also supports new standards like 3G SDI, HDMI and DisplayPort.
Easy setup and management
The V series is managed and controlled by the dedicated V series Toolset (VTS), a direct derivative of the first-class Director Toolset. The VTS comes with an intuitive interface for easy display management and offers advanced options such as brightness, gamma and color temperature control and display configuration.
Black package LEDs for high contrast

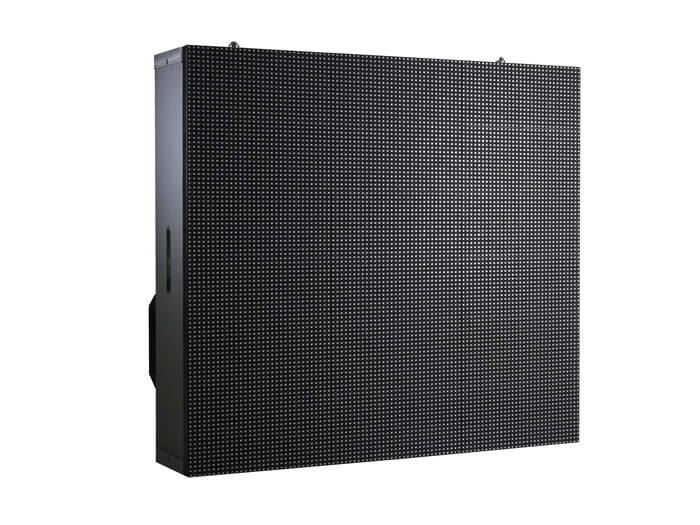

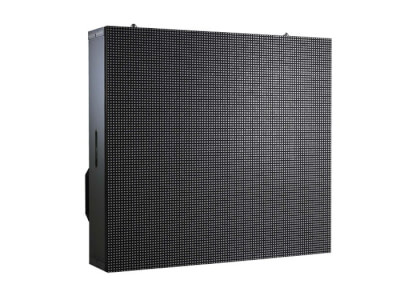

The V4 is a tile-based indoor LED display geared with 4.5mm pixel pitch SMD LEDs for ultimate image quality. Featuring the latest indoor LED technology with black package LEDs, it offers very dark black levels with an extremely high contrast. Another unique characteristic is its very wide viewing angle.
Flexible scaling
Building on Barco’s experience with high-end LED technology, the V series is supported by the DV-100 image processor with high-class Athena™ scaler for flexible scaling. Next to supporting standard inputs up to (dual) HD-SDI, the V series also supports new standards like 3G SDI, HDMI and DisplayPort.
Easy setup and management
The V series is managed and controlled by the dedicated V series Toolset (VTS), a direct derivative of the first-class Director Toolset. The VTS comes with an intuitive interface for easy display management and offers advanced options such as brightness, gamma and color temperature control and display configuration.
Black package LEDs for high contrast
The V4 is a tile-based indoor LED display geared with 4.5mm pixel pitch SMD LEDs for ultimate image quality. Featuring the latest indoor LED technology with black package LEDs, it offers very dark black levels with an extremely high contrast. Another unique characteristic is its very wide viewing angle.
Specifikace
| Pixel pitch | 4.5 mm |
| Brightness | 1,700 nits |
| LED type | 3-in-1 black SMD |
| Pixel density | 49,383/sqm |
| 4,612/sqft | |
| 16,384/tile (128x128) | |
| Viewing angle | H: +55/-55 degrees |
| V: +55/-55 degrees | |
| Contrast ratio | 2,300:1 @ 200 Lux |
| Lifetime | 50,000 hrs (@50 % brightness) |
| Power consumption | less than or equal to 612W/sqm |
| less than or equal to 203W/tile | |
| Tile size (WxHxD) in mm | 576 x 576 x 130 |
| Weight | 17.9 kg/tile |
| 35.53 lbs | |
| IP rating | Indoor only |
| Processing | 16 bit/color |
| Refresh rate | more than 2,800 Hz |
| Max. stacking | 17 tiles |
| Max. hanging | 34 tiles |
| Interfaces/Ports | CAT5 |
| Serviceability | front and back |
| Source compatibility (with digitizer) | DVI-I (CVBS/YC/YUV/DVI), RGB, SDI (HD/SD),HDMI, DisplayPort |
| Operatable digitizer | DV-100 |
| Certifications | CE, ETL, CCC, FCC classA, RoHS, China RoHS, WEEE, Reach |
