MiStrip
Vysoce výkonné modulární řěšení vhodné jak do vnitřních tak i venkovních prostor
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail

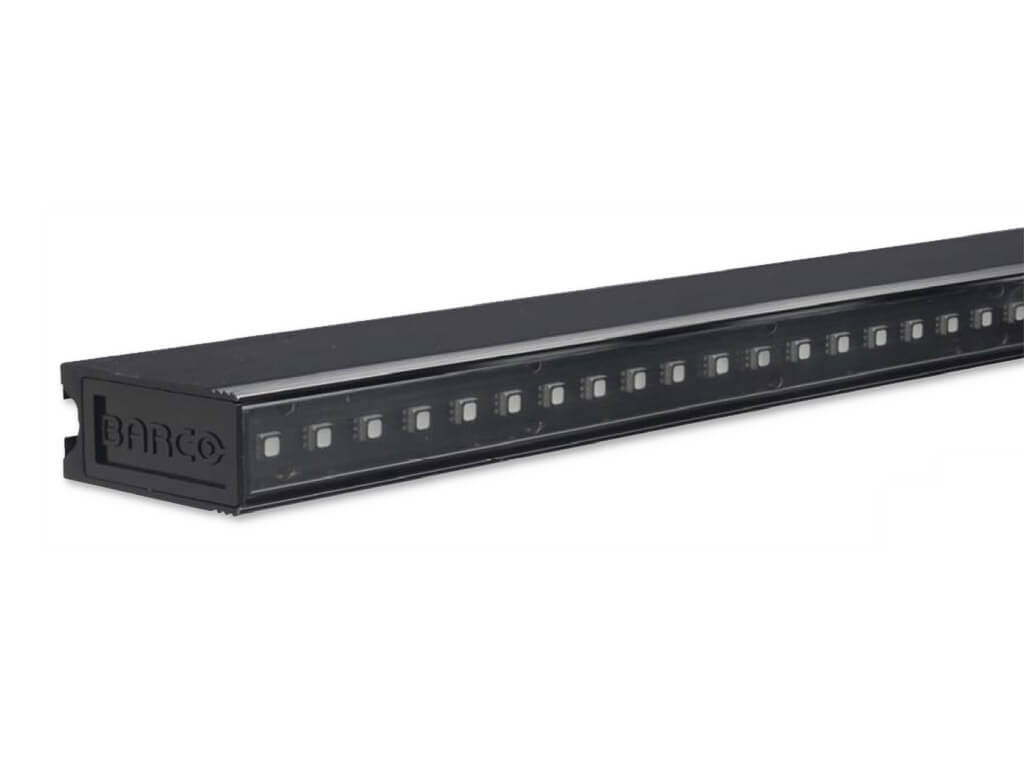

MiSTRIP, Barco's creative pixel strip, sets a new standard for LED display technology in a wide variety of applications. From large free-form video displays to architectural visual design. High brightness and tight pixel pitch in a slim, lightweight yet rugged package make MiSTRIP a true all-round performer. The possibilities with this innovative product include not only stunningly bright video displays of any size, shape or form but also lighting-type effects, all in one package. In addition, the MiSTRIP's IP65 protection rating and wide operating temperature range enable outdoor usage in any weather conditions.
Specifikace
| Pixel pitch | 13.25 mm |
| Brightness | 160 cd/m |
| Calibrated Brightness | 6100 Nit |
| Viewing angle | 145° symmetrical |
| Operating temperature | -20°C -> 45°C |
| Operating humidity | 10 - 90% |
| LED configuration | 3-in-1 SMD RGB |
| Lifetime | 50,000 hours |
| Colors | 185 Trillion |
| Processing | 15.8 bit / color |
| Refresh rate | 800 Hz |
| Connections | d-Sub 25 |
| Mounting | Multiple movable M6 threads on integrated track |
| D320 input compatibility | Data DVI up to UXGA, SDI, HD-SDI, YUV, Composite, S-Video |
| Height | 26 mm |
| Depth | excl. connector: 55 mm |
| Depth | incl. connector: 63 mm |
| Length | 1484 mm / 375 mm |
| Certifications | ETL (UL equivalent), CEBEC, CE, FCC Class A |
Order number
R9010565B8
Popis
Key benefits:
- High pixel density (13.25mm) makes creative high resolution displays possible.
- High brightness enables usage in both outdoor as well as high bright indoor applications.
- Flexibility in use; conventional screen or creative.
- Rugged, weather proof (IP65)
- Wide symmetrical viewing angle & short minimum viewing distances thanks to 3-in-1 RGB LEDs.
- Superior image quality. True 15-bit processing and LED level calibration ensure consistent color and brightness uniformity.
