FLX - 24
FLX serie - vysoce výkonný LED pixel, který může být kombinován v mnoha variacích pro tvorbu specifických tvarů a diizajnů
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail

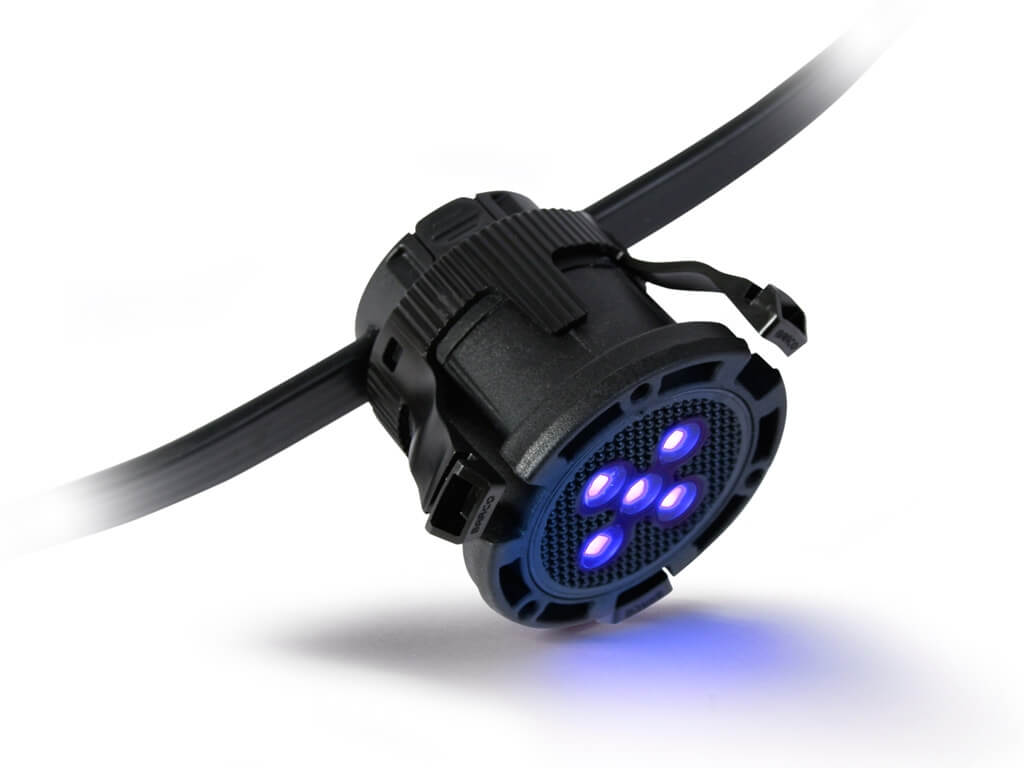

Barco has taken creative LED to a complete new level with the introduction of transformable LED. With this brand new concept, designers are no longer limited to traditional LED displays but can instead create any shape they want. FLX is a unique freeform LED concept that will amaze spectators all over the world. The FLX-24 consists of individually controllable, compact, high quality 24mm LED pixel modules that can be combined with a wide variety of specifically designed carriers (mechanical structures) into any shape you desire.
Furthermore, Barco's transformable LED is ideally suited for countless applications – from live events to fixed installations, indoor as well as outdoor. It is created to withstand the toughest weather conditions and can be used in bright sunlight or rain. No matter what you want, you can transform the FLX to your own design.
Specifikace
| Brightness | 3.000 mcd |
| Light Output | 11 lumens |
| Viewing angle | 140 deg. (horizontal and vertical) |
| Color depth | 16-bit/color |
| LED type | 3-in-1 Full Color SMD |
| Calibration | batch-to-batch correction |
| Access | front or rear |
| Socket mount | M3 threat in socket |
| Pixel mount | External spring clip to front |
| Ambient temperature | Max 45° C |
| Diameter | 24 mm |
| Height | 31 mm (inl. socket) |
| Weight | 22.5g (incl. socket and 130 mm cable) |
| Protection rating | IP66 (rating when mated) |
| max. number of pixels on 1 cable | 256 |
| Default cable string | 16 pixels, 130 mm pitch, interconnectable 64 pixels, 130 mm pitch, interconnectable |
