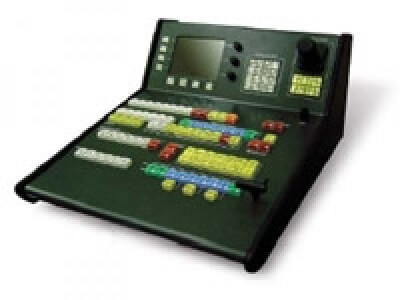

Encore Controller SC

The Encore Controller SC supports up to 24 inputs and six destinations, comprised of Encore Video Processors, ScreenPRO-II and ImagePRO processors. Designed for both single screen and wide screen blended destinations, the Controller SC offers 64 presets, plus almost all the features included with the larger Controller LC. The SC's compact design is ideal for tight production environments, and is just as roadworthy as the larger model LC.

Encore Processors supported: 6
Widescreen support: Yes
External router control: Yes
Inputs supported: 24
Destinations supported: 6
Available presets: 64
Layers supported: 1 DSK, 6 scaled inputs (PIP or Key), 1 transitioning background
User-selectable transition functions: Yes
Available destinations: 4
Available user-defineable keys None
Joystick & T-bar: Yes
Machine control: No
320 x 240 graphic displays: 1
Light sticks: 2
PS/2 keyboard support: Yes
Communication: Ethernet, RS-232, USB
Program sequencing: Yes
Field upgradable: Yes
Ethernet control interfaces: Yes
Tally support: 8
