C5

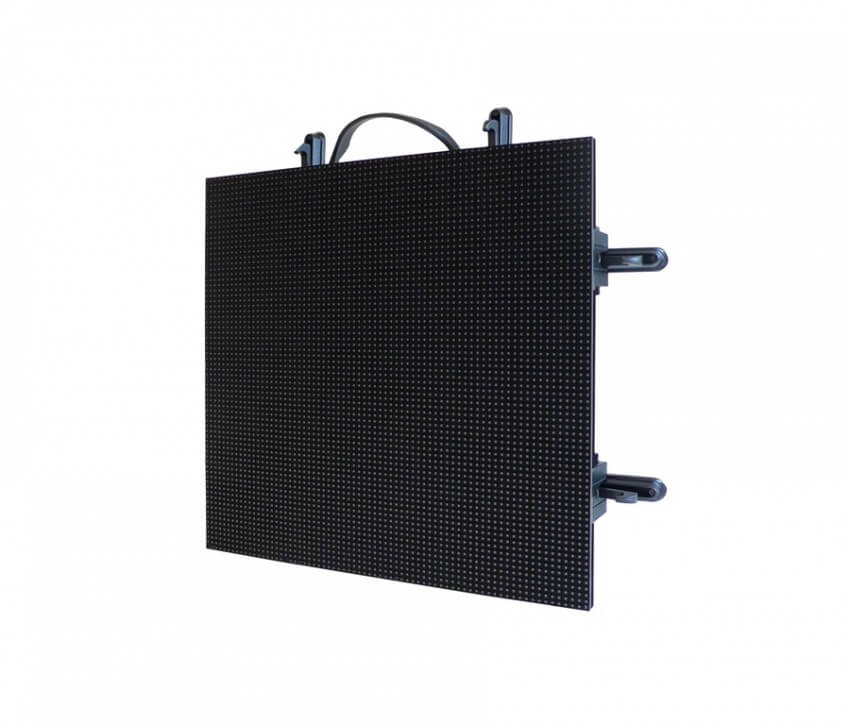

LED displej C5 patří do úspěšné C- série belgického výrobce Barco. Pro tuto produktovou řadu je typická nízká hmotnost, snadná instalace, tichý a energeticky úsporný provoz. Kromě těchto kvalit se C5 rovněž opírá o výhody systému pro zpracování obrazu DX,
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Klíčové prvky
Black face 5.5mm pitch SMD LEDs
Low weight – 37kg/m²
Slim design, only 65mm deep
Renowned image quality based on DX processing
Black face SMD technology with high contrast
Integrated curved capabilities
Silent, no cooling fans
Environmentally friendly
Low power consumption
Low weight – 37kg/m²
Slim design, only 65mm deep
Renowned image quality based on DX processing
Black face SMD technology with high contrast
Integrated curved capabilities
Silent, no cooling fans
Environmentally friendly
Low power consumption
Specifikace
| Pixel pitch | 5.55 mm |
| Brightness | 2,000 nits (calibrated at 6500° K) |
| LED configuration | SMD RGB Black |
| Pixel density | 5,184 LEDs per tile (72x72) |
| Contrast ratio | 3,500:1 @ 200 lux |
| Hor. viewing angle | +/-60° (min 50% brightness) |
| Lifetime | 100,000 hours (@50% brightness) |
| Power consumption | 660 W/m² (max) |
| 220 W/m² (typical) | |
| Vert. viewing angle | +/-60° (min 50% brightness) |
| Weight | 6.4 kg/tile |
| 40 kg/m² | |
| Processing | DX-series (NNI-based) |
| Colors | 281 trillion |
| Refresh rate | 3,200 Hz |
| Temperature range | 0°C/+40°C (operational) |
| -20°C/+60°C (storage) | |
| Humidity | 35% / 85% (operational) |
| 10% / 90% (storage) | |
| Truss build-up | Max. 25 tiles (10m) |
| Foot build-up | Max. 12 tiles (4.8m) |
| Source compatibility | CVBS, YC, YUV, RGB, DVI (single and dual link, up to 2048 x 1536), SDI, HDSDI, Dual link HDSDI |
| Power connection | Max. 20 tiles/16 A circuit |
| Data connection | Up to 150 tiles per NNI output |
| Tile/tile Z-alignment | +/-0.5mm |
| Curve capability | 0° (standard) |
| Radius +4m / +8m / -10m / -22m (optional) | |
| Alternative curves | custom dowels required |
| Dimensions (HxWxD) | 400 x 400 x 63 mm |
| Certifications | ETL, CE, RoHS, FCC, TUV (pending), CCC (pending) |
