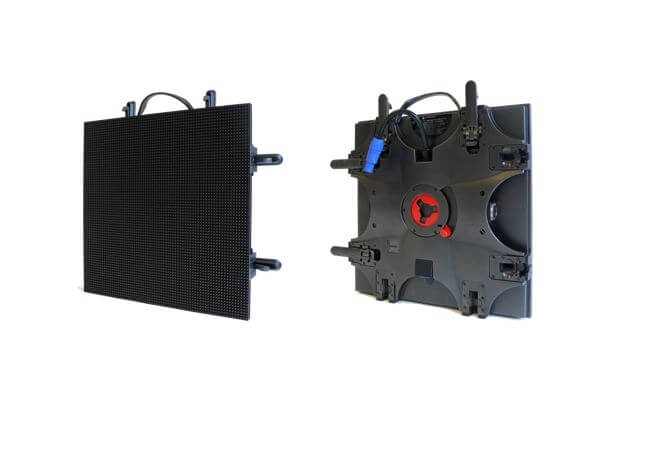

C16
Vysoce výkonná řada C LED displejů Barco je určena pro pronájem i fixní instalace. Vzhledem k tomu, že LED C16 nepotřebují chlazení ventilátory, je pro ně příznačný tichý a bezúdržbový provoz. Jejich tenká a lehká konstrukce umožňuje snadnou manipulaci a
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Popis
Barco's high-performance C series LED displays are designed for both rental and permanent installations. They consume a fraction of the power consumption and heat generation of other LED displays. As a consequence, they don't need cooling fans, resulting in silent and maintenance-free operation. Furthermore, their thin and lightweight design allows for easy handling and installation.
Innovative shader design
The C16 LED display combines the C series backbone with the renowned DX image processing. Thanks to its innovative shader design, the C16 can easily be combined with the C5 - their difference is barely noticeable when there is no image displayed on the screen. This unique design enables seamless combinations of high and low resolution LED tiles.
For events and fixed installations
Next to serving the events market, the C16 is also very attractive for fixed installations thanks to its limited maintenance, thinness and low power consumption.
Innovative shader design
The C16 LED display combines the C series backbone with the renowned DX image processing. Thanks to its innovative shader design, the C16 can easily be combined with the C5 - their difference is barely noticeable when there is no image displayed on the screen. This unique design enables seamless combinations of high and low resolution LED tiles.
For events and fixed installations
Next to serving the events market, the C16 is also very attractive for fixed installations thanks to its limited maintenance, thinness and low power consumption.
Specifikace
| Pixel pitch | 16.7 mm |
| Brightness | 2,000 nits |
| LED configuration | 3-in-1 black SMD |
| Pixel density | 3,600/sqm |
| 335/sqf | |
| 2,304/tile | |
| Contrast ratio | 3,500:1 |
| Hor. viewing angle | +/-60° |
| Vert. viewing angle | +/-60° |
| Lifetime | 100,000 hours (@50% brightness) |
| Power consumption | 660 W/m² (max) |
| 220 W/m² (typical) | |
| Tile size (WxHxD) in mm | 400 x 400 x 63 |
| Weight | 6.4 kg/tile |
| 40 kg/m² | |
| IP rating | indoor only |
| Processing | 16 bit/color |
| Refresh rate | 3,200 Hz |
| 3D ready (optional) | yes |
| Truss build-up | Max. 25 tiles (10m) |
| Foot build-up | Max. 12 tiles (4.8m) |
| Interfaces/Ports | x2 HDMI link |
| Serviceability | front and back (optional) |
| Source compatibility | CVBS, YC, YUV, RGB, DVI (single and dual link, up to 2,048 x 1,536), SDI, HDSDI, Dual link HDSDI |
| Operatable digitizer | DX-100, DX-700 |
| Certifications | ETL/UL, CE, FCC, RoHS, TUV (pending) |
