ATC 8010

Intel® Core™ 8th Gen. CPU + NVIDIA® GPU, Powerful Intelligent Platform for AI and ANPR/AFR

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní infomace

  • Intel® Core™ 8th Gen. desktop, i7-8700T, 2.4GHz, 6 Core
  • NVIDIA® GTX 1050Ti/1080 MXM graphic module supported
  • 8 x 10/100/1000 PoE 802.3af/at
  • 1 x VGA and 5 x HDMI video output
  • ultraONE+ for 10-Meter video + audio output
  • 2 x External SSD and 2 x mSATA for RAID 0, 1, 5, 10
  • 2 x WWAN module and 3 x SIM socket with eSIM option
  • Swappable fan kit
  • 3 x mini-PCIe and 1 x M.2
  • CE/FCC/E mark

Specifikace

CPU Intel® Core™ 8th Gen. i7-8700T processors, 2.4GHz, 35W, 6 Core
Chipset Intel® Q370 platform controller hub
Memory 2-Channel 204-pin DDR4 SO-DMIM sockets up to 16GB/channel
(32G for two channels), default 8GB industrial grade memory
GPU ATC 8010-7A
- NVIDIA® GeForce® GTX 1050Ti MXM module
- Memory size: 4GB GDDR5
- CUDA core: 768
- GPU clock: 1493 MHz
- Memory clock: 7.0 GHz
- Memory interface width: 128-bit
ATC 8010-7D
- NVIDIA® GeForce® GTX 1080 MXM module
- Memory size: 8GB GDDR5X
- CUDA core: 2560
- GPU clock: 1556 MHz
- Memory clock: 10.0 GHz
- Memory interface width: 256-bit
Storage 2 x 2.5” SATA 3.0 external SSD
2 x mSATA
Expansion 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0, SATA 3.0)
1 x Full size mini-PCIe socket (USB 2.0), optional M.2 key B (3042)
1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0, SATA 3.0 (option))
1 x M.2 key B (USB 2.0, USB 3.1)
GNSS and On Board Sensor 1 x Default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou
Optional modules with dead reckoning available
Built-in TPM 2.0
Power over Ethernet 8-Port LAN, 10/100/1000 Mbps, PoE 802.3af/at, max. 60W
1-Port LAN, 10/100/1000 Mbps

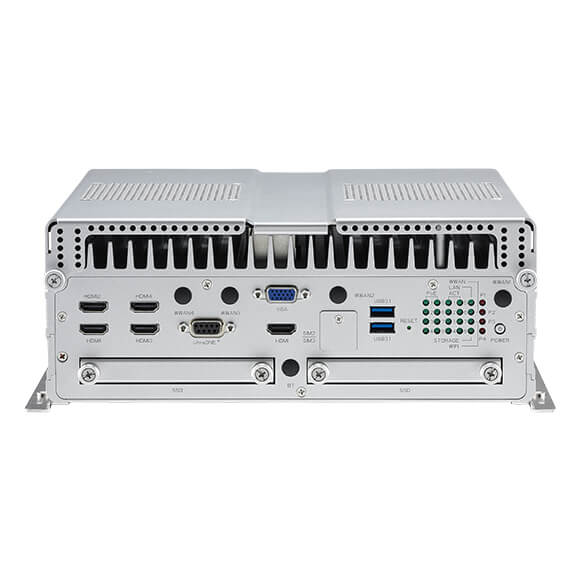

I/O Interface-Front 24 x LED indicators (including 4 x programmable LED)
1 x HDMI 1.4b. 4 x HDMI 2.0
1 x VGA
1 x ultraONE+ for 10M video + audio output + 24VDC output
2 x USB 3.1 type A (5V/1A)
2 x Externally accessible SIM card sockets
2 x 2.5” removable SSD tray
1 x Reset button
1 x Power button
5 x SMA antenna

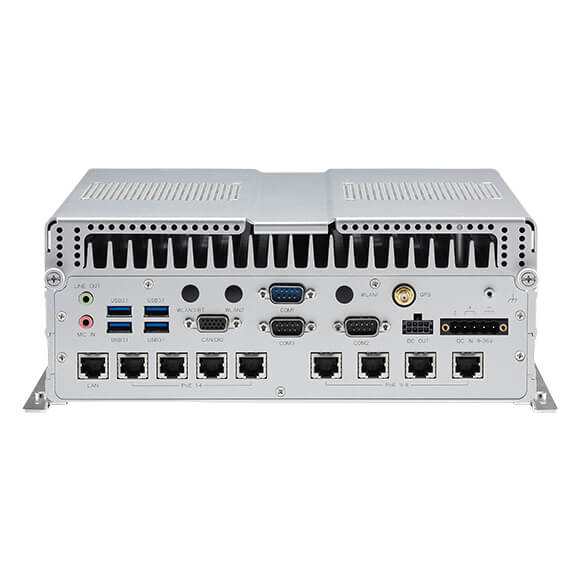

I/O Interface-Rear 8 x PoE 802.3af/at (Max. 60W)1-Port LAN, 10/100/1000 Mbps
1 x 5-pin terminal block for 9V~36V DC1 x Mic-in, 1 x Line-out
4 x 2 connector for 12VDC/2A output, power button, 2 x MDI
2 x DB9 for full RS232
1 x DB9 for full RS232/422/485 (RI, 5V/0.5A, 12V/0.5A)
1 x DB15
- 1 x Isolated CANBus 2.0B
- 1 x GPS DR
- 4 x DI and 4 x DO
4 x SMA antenna
4 x USB 3.1 type A (5V/1A)
Power Management Selectable boot-up & shut-down voltage for low power protection by software
Setting 8-level power on/off delay time by software
Support S3/S4 suspend mode
Operating System Windows 10/Linux/YOCTO (by request)
Dimensions 260 x 196 x 99 (W x D x H) (mm)
Weight 8.5kg
Environment Operating temperatures
- -30°C~60°C (w/industrial SSD) with air flow
Storage temperatures: -40°C~80°C
Relative humidity: 90% (non-condensing)
Vibration (random)
- 2g@5~500 Hz (in operation, SSD)
Vibration (SSD)
- Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure
- Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test
Shock (SSD)
- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g
- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Certifications CE approval, FCC Class A, E13 mark
