ASLAN-W812C-2930G2
11.6" pasivně chlazené průmyslové Panel PC s Intel® Bay Trail proceosorem
Základní informace
- High Resolution LCD Display w/ LED Backlight
- Flat panel with projected capacitive touchscreen
- Front panel compliant with IP65
- Anti-scratch surface: 7H hardness
- Slim and Compact Design
- Mini PCIe expansion slot support
- Fanless cooling system
- Cable-less Design
- Low power consumption
- DC-12V Power Input
Specifikace
| System | |
| CPU | Intel® N2930 Quad-Core™ Processor 1.83GHz |
| Memory | 2GB DDR3L SO-DIMM RAM module installed 1 x DDR3L SO-DIMM Socket, supporting 1600MHz SDRAM up to 8GB |
| LAN | 2 x Intel® I210AT GbE controllers |
| Watchdog Timer | 1~255 levels reset |
| Storage | |
| Device | 1 x mSATA for SATA interface SSD Supports 300MB/s HDD transfer rate |
| Audio | |
| Type | 1x Mic-in / 1x Line out |
| LCD Display | |
| Size/Type | 11.6" TFT LCD Panel |
| Max. Resolution | 1920 x 1080 |
| Max. Colors | 16.7M |
| Luminance | 300 cd/m² |
| Touch Screen | Projected capacitive touch panel |
| View Angle (U/D/R/L) | 85°/85°/85°/85° |
| Power System | |
| Power Input | DC 12V input with DC jack |
| Certification | |
| EMC / EMI | CE, FCC Class A |
| Expansion | |
| Expansion Bus | 1 x Full-Size mPCIE (PCIex1+USB2.0) 1 x Half-Size mPCIE (PCIex1 Lane only) |

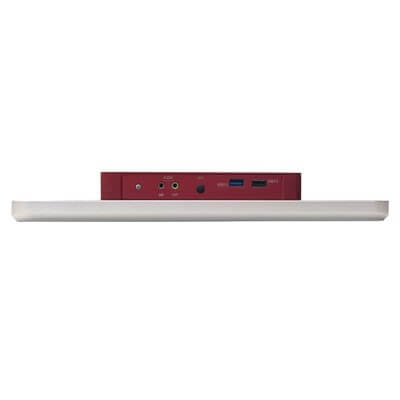

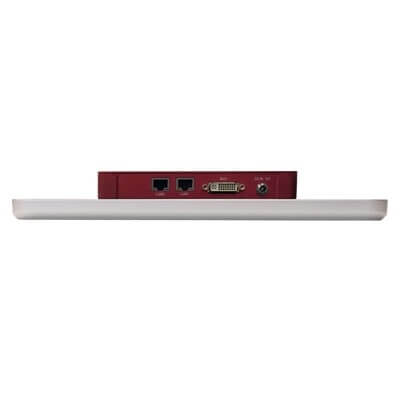

| External I/O | |
| USB Port | 1 x Type-A USB 3.0 port 1 x Type-A USB 2.0 port |
| LAN | 2 x RJ-45 GbE ports |
| DVI | 1 x DVI-I connector |
| WiFi | 1 x SMA antenna holes for optional WiFi function |
| Mechanical | |

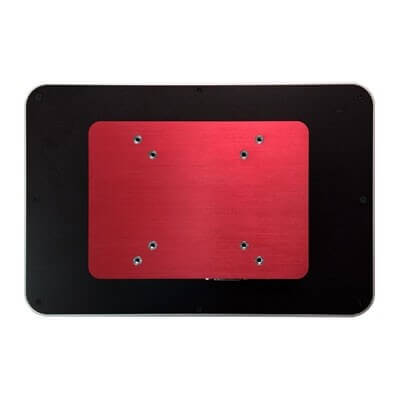

| Mounting Type | VESA-75 / 100 Mounting with Bracket |
| Chassis | Aluminum front bezel and SECC steel chassis |
| Dimension (W x H x D) | 306.00 x 206.00 x 39.50 mm (12.05” x 8.11” x 1.56”) |
| Weight (Net) | 2.1 kg (4.63 lb) |
| Environmental | |
| Operating Temp. | -20ºC ~ 55ºC (-4°F ~ 140°F) |
| Storage Temp. | -30ºC ~ 70°C (-22°F ~ 158°F) |
| Operating Humidity | 10 ~ 95% RH @ 60°C (non-condensing) |
| Vibration | 5 ~ 500Hz, 1Grms Random (with CFast/SSD) |
| Shock | Operating 10G, 11ms Non-operating 30G, 11ms (with CFast/SSD) |
