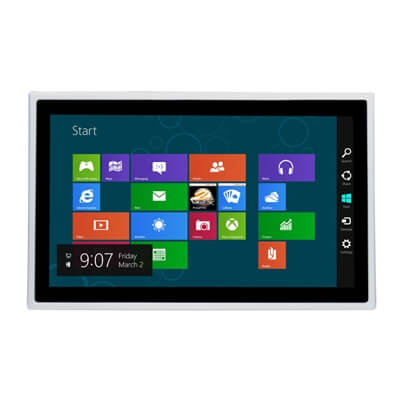

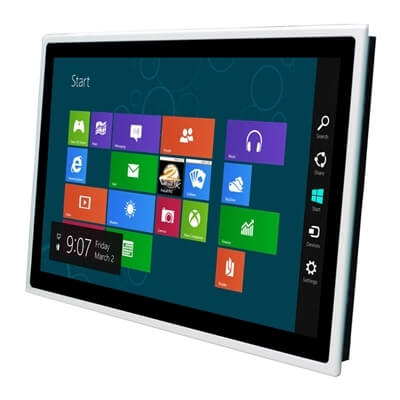

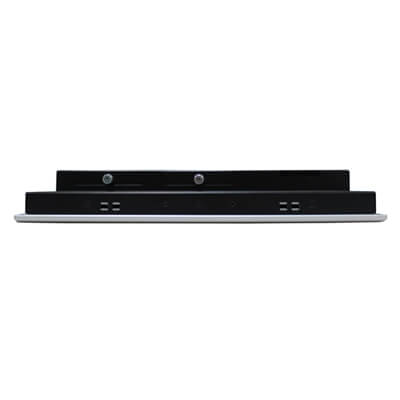

ASLAN-W722C
Fanless 21.5" Wide-Screen Industrial Panel PC s procesorem Intel® J1900 Quad-Core™
Základní informace
- 21.5" 1920 x 1080 FHD LCD Display w/ LED Backlight
- Flat panel with projected capacitive touchscreen
- Front panel compliant with IP65
- Anti-scratch surface: 7H hardness
- Vertical I/O Design
- Easy Maintenance Design for CFast/HDD/SSD
- Serial Ports (RS-232/485), RS-485 w/ Auto-flow Control
- Mini PCIe expansion slot support
- Fanless cooling system
- Cable-less Design
- Low power consumption
- 2 x SMA Antenna Holes for optional WiFi Function
- 9~36V Wide-Range DC Input
Specifikace
| System | |
| CPU | Intel® J1900 Quad-Core™ Processor 2.0GHz |
| Memory | 1 x 4GB DDR3L SO-DIMM RAM module installed |
| LAN | 2 x Intel® I210AT GbE controllers 1 x Intel® 8111E GbE controller |
| Watchdog Timer | 1~255 levels reset |
| Storage | |
| Device | 2 x outside-accessible 2.5” drive bay (default), or CFast slot (optional for OEM version) |
| Audio | |
| Speaker | 2 x 2W speakers (optional) |
| LCD Display | |
| Size/Type | 15.6" TFT LCD Panel |
| Max. Resolution | 1366 x 768, WXGA |
| Max. Colors | 16.2M |
| Luminance | 300 cd/m² |
| Touch Screen | Projected capacitive touch panel |
| View Angle (U/D/R/L) | 80°/80°/85°/85° |
| Power System | |
| Power Input | DC 9~36V |
| Certification | |
| EMC / EMI | CE, FCC Class A |
| Expansion | |
| Expansion Bus | 1 x Mini-card socket (Full Size) |

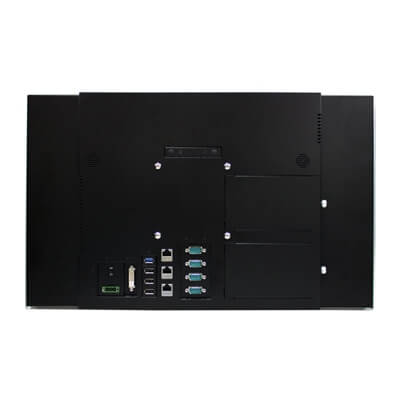

| External I/O | |
| Serial Port | 2 x RS232 & 2 x RS-232/485 w/ auto flow control |
| USB Port | 1 x Type-A USB 3.0 ports 3 x Type-A USB 2.0 port |
| LAN | 3 x RJ-45 GbE ports |
| DVI | 1 x DVI-I connector |
| WiFi | 2 x SMA antenna holes for optional WiFi function |
| Mechanical | |
| Mounting Type | Panel Mounting and VESA-100 Mounting |
| Chassis | Panel-mounting chassis, aluminum front bezel and SECC steel chassis |
| Dimension (W x H x D) | 404.00 x 255.00 x 49.20 mm (15.9” x 10.0” x 1.93”) |
| Weight (Net) | 4.6 kg (10.14 lb) |
| Environmental | |
| Operating Temp. | -20ºC ~ 55ºC (-4°F ~ 140°F) |
| Storage Temp. | -30ºC ~ 70°C (-22°F ~ 158°F) |
| Operating Humidity | 10 ~ 95% RH @ 60°C (non-condensing) |
| Vibration | 5 ~ 500Hz, 2Grms Random (with CFast/SSD) |
| Shock | Operating 10G, 11ms Non-operating 30G, 11ms (with CFast/SSD) |
| OS Support |
| W7 Pro / WS7E / W8.1 Industry / Linux: Ubuntu |
