98213
Odolný router s výškou 4U pro zabudování do 19'' racku
Základní informace

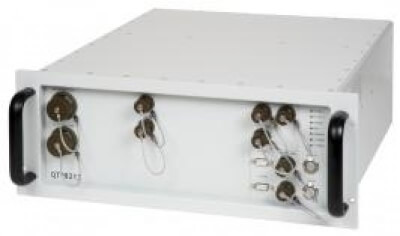

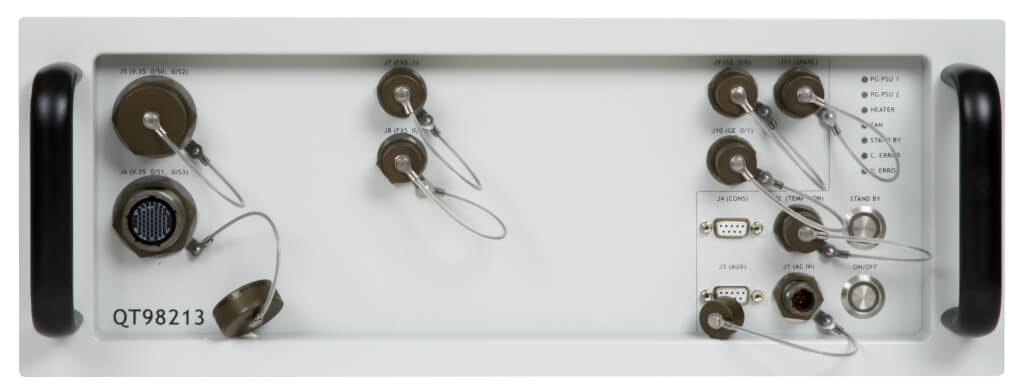

Aqeri 98213 is a military Router based on Cisco 2821-HSEC/9. It is equipped with Cisco modules for Ethernet, FXS, V35, ISDN etc. The unit has internal climate control for use in a wide temperature area and a temperature monitoring port for alarm output. Further, the router has an internal redundant AC power unit
Specifikace
| TECHNICAL SPECIFICATIONS | |
| Router Board: | Cisco 2821-HSEC/9 |
| I/O Interfaces | |
| 10/100Mbit: | x2 |
| FXS: | x2 |
| V.35: | x2 |
| ISDN: | x1 |
| Aux: | x1 |
| Console: | x1 |
| Temp Monitoring: | x1 |
| CONNECTORS | |
| 10/100 Mbit: | MIL 38999 |
| FXS: | MIL 38999 |
| V.35: | MIL 38999 |
| ISDN: | MIL 38999 |
| Aux: | DSUB |
| Console: | DSUB |
| Temp Monitoring: | MIL 38999 |
| AC In: | MIL 38999 |
| PHYSICAL CHARACTERISTICS | |
| Dimensions: | 440 x 177 x 504mm (WxHxD) |
| Weight: | 17kg |
| Color: | Grey, other optional |
| ELECTRICAL SPECIFICATIONS | |
| Power requirements: | 90-264 VAC, 50-60Hz (Internal Redundant Power Supply) |
| Power consumption: | 110W (excluding heaters) |
| ENVIRONMENTAL CHARACTERISTICS | |
| Designed to fulfill (other standards on request): | MIL-STD-461E MIL-STD-810G European CE |
| TEMPEST SDIP-27, Level A, B, C | Option |
| Temperature Operating: | -20°C to +55°C |
| Vibration Operating: | 20-2000Hz 0,04g rms |
| Shock Operating: | 40g, 6ms, ½ sine wave |
| Humidity: | 5% to 95% non condensing |
| Altitude Operating: | 3000m |
