97000
Odolný IP telefon
Základní informace

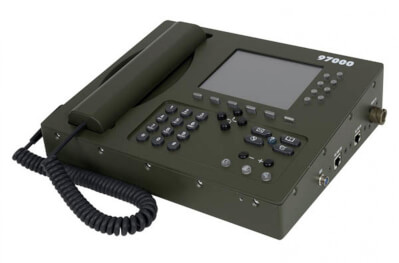

Aqeri 97000 is a rugged IP phone specially designed for military applications. The IP phone delivers the latest technology and advancements in IP telephony. It provides communication over the same data network as your computer, allowing you to place and receive phone calls, put calls on hold, transfer calls, make conference calls, and so on. Aqeri 97000 is built into a fully sealed and vibration proof aluminum chassis.
Specifikace
| TECHNICAL SPECIFICATIONS | |
| Phone Board: | Cisco Unified IP Phone 7975G |
| Wideband Audio: | Support for wideband (G.722 codec, adherence to TIA 920) |
| Codec Support: | G.711a, G.711µ, G.729a, G.729ab, G.722, and iLBC audio compression codecs are supported |
| Signaling Protocols: | Skinny Client Control Protocol (SCCP) and Session Initiation Protocol (SIP) with Cisco call control |
| Call Control compatibility: | Supported in Cisco Unified Communications Manager Versions 4.1(3)sr5b, 4.2(3)sr2b, 4.3(1), 5.1.1(b), 5.1(2), 6.0(1) and greater |
| For more technical details, see Cisco web | |
| I/O Interfaces | |
| 10/100 PC: | x1 |
| 10/100 SW: | x1 |
| Headset: | x1 (Peltor™ ComTac XP Headset as an option) |
| CONNECTORS | |
| 10/100 Mbit PC: | RJ45 |
| 10/100 Mbit SW: | RJ45 (PoE IEEE 802.3af Class 3 support) |
| Headset: | Hirose |
| DC In: | MS3106F 10SL-3S |
| PHYSICAL CHARACTERISTICS | |
| Dimensions: | 300 x 40-70 x 238mm (WxHxD) |
| Weight: | 3kg |
| Color: | Green, optional any color |
| ELECTRICAL SPECIFICATIONS | |
| Power requirements: | 28VDC or PoE (18-36VDC, safe start Min 21VDC, Max 33VDC) |
| Power consumption: | 9W at 28VDC (excluding heaters) |
| ENVIRONMENTAL CHARACTERISTICS | |
| Designed to fulfill (other standards on request): | MIL-STD-810G European CE |
| TEMPEST SDIP-27 Level A, B, C | Option |
| Temperature Operating: | -20°C to +55°C |
| Vibration Operating: | 10-500Hz 1,04grms |
| Shock Operating: | 15g, 11ms, ½ sine wave |
| Humidity: | 5% to 95% non condensing |
| Altitude Operating: | 3000m |
