962482
Odolný switch s výškou 3U pro zabudování do 19'' racku
Základní informace

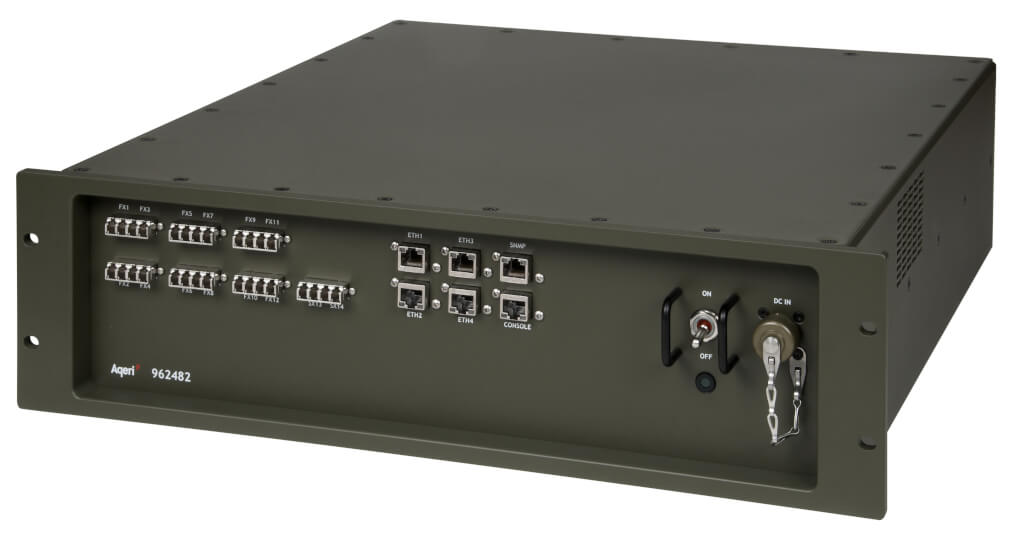

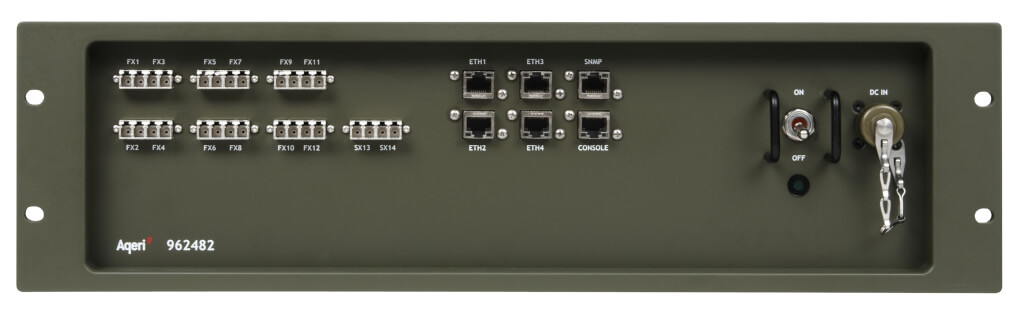

Aqeri 962482 is a semi rugged 19" 3U Cisco-based Fiber and Copper Gigabit Switch with POE for Military and Industrial applications. Interface connectors, copper and fiber are IP54 sealed. The switch has been specially designed to withstand harsh environments where operators place high demand on function and reliability. It works reliaby inspite of dust, dirt, vibrations, strong electromagnetic fields and standard temperature variations. Further, the fully aluminum construction stands for low radiation and high noise immunity.
Specifikace
| TECHNICAL SPECIFICATION | |
| Switchboard: | Cisco WS-C2960G-24TC-L |
| I/O Interfaces: | |
| 100Mbit Fx Multimode: | x12 |
| 1000Mbit SX Multimode: | x2 |
| 10/100/1000 BT: | x4 |
| SNMP: | x1 |
| Console: | x1 |
| CONNECTORS | |
| 100Mbit Fx Multimode: | LC |
| 1000Mbit SX Multimode: | LC |
| 10/100/1000 BT: | RJ45 |
| SNMP: | RJ45 |
| Console: | RJ45 |
| DC In: | MS3102E 10SL-3P |
| PHYSICAL CHARACTERISTICS | |
| Dimensions: | 440 x 132.45 x 500mm (WxHxD) |
| Weight: | 12kg |
| Color: | Green, other optional |
| ELECTRICAL SPECIFICATIONS | |
| Power requirements: | 48VDC |
| Power consumption: | Max 82W at 48VDC (excluding heaters) |
| ENVIRONMENTAL CHARACTERISTICS | |
| Designed to fulfill (other standards on request): | European CE, EN 60950-1 MIL-STD-461E MIL-STD-1275B MIL-STD-810G |
| TEMPEST SDIP-27 Level A, B, C: | Option |
| Temperature Operating: | 0°C to +40°C |
| Vibration Operating: | 10-500Hz, 1,04g rms |
| Shock Operating: | 15g, 11ms, ½ sine wave |
| Humidity: | 5% to 95% non condensing |
| Altitude Operating: | 3000m |
