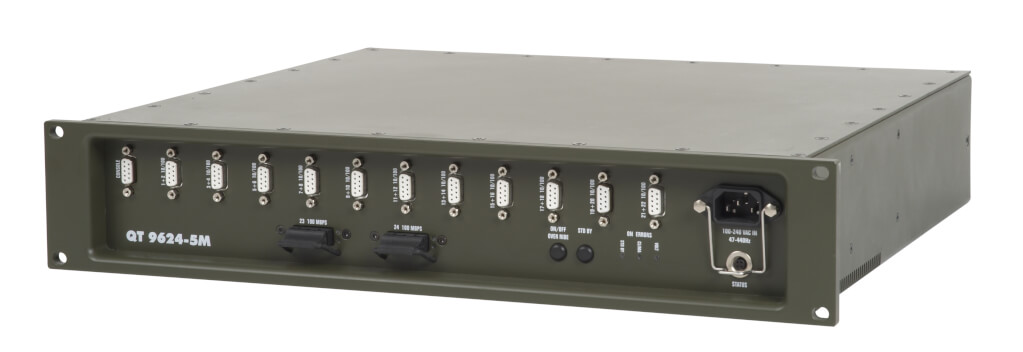

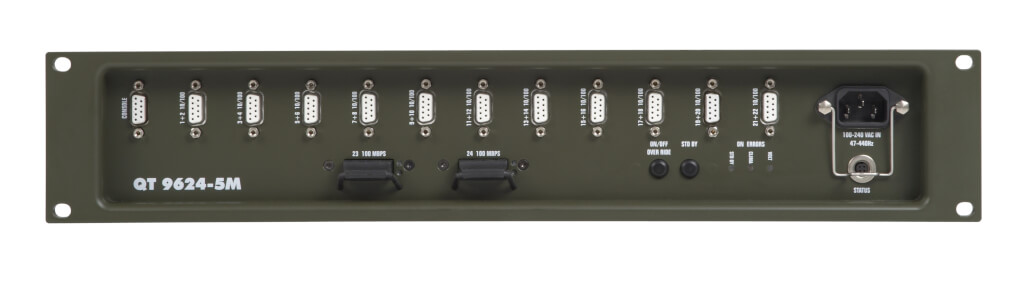

9624-5M
Odolný switch s výškou 2U pro zabudování do 19'' racku s AC napájením
Základní informace
Aqeri 9624-5M is a rugged switch designed for use in harsh environments. The Cisco based switch is built into a fully sealed aluminium chassis. Great temperature variations is not a problem as the product is equipped with intergrated heating and climate control with status port.
Specifikace
| TECHNICAL SPECIFICATIONS | |
| Switchboard: | Cisco WS-2960-24TT-L |
| I/O Interfaces | |
| 10/100 Mbit: | x22 (2 ports in each connector) |
| 100 Mbit Multimode: | x2 |
| Console: | x1 |
| Temp Monitoring port: | x1 |
| CONNECTORS | |
| 10/100 Mbit: | DSUB |
| 100 Mbit Multimode: | SC |
| Console: | DSUB |
| Temp Monitoring port: | Binder 712 |
| AC In: | IEC C14 |
| PHYSICAL CHARACTERISTICS | |
| Dimensions: | 440 x 86 x 400mm (WxHxD) |
| Weight: | 8kg |
| Color: | Green, other optional |
| ELECTRICAL SPECIFICATIONS | |
| Power requirements: | 90-264 VAC, 50-60Hz |
| Power consumption: | 36W (excluding heaters) |
| ENVIRONMENTAL CHARACTERISTICS | |
| Designed to fulfill (other standards on request): | MIL-STD-461E MIL-STD-810G European CE |
| Temperature Operating: | -20°C to +55°C |
| Vibration Operating: | 10-500Hz 1,04g rms |
| Shock Operating: | 15g, 11ms, ½ sine wave |
| Humidity: | 5% to 95% non condensing |
| Altitude Operating: | 3000m |
