96200
Odolný router s výškou 5U pro zabudování do 19'' racku
Základní informace

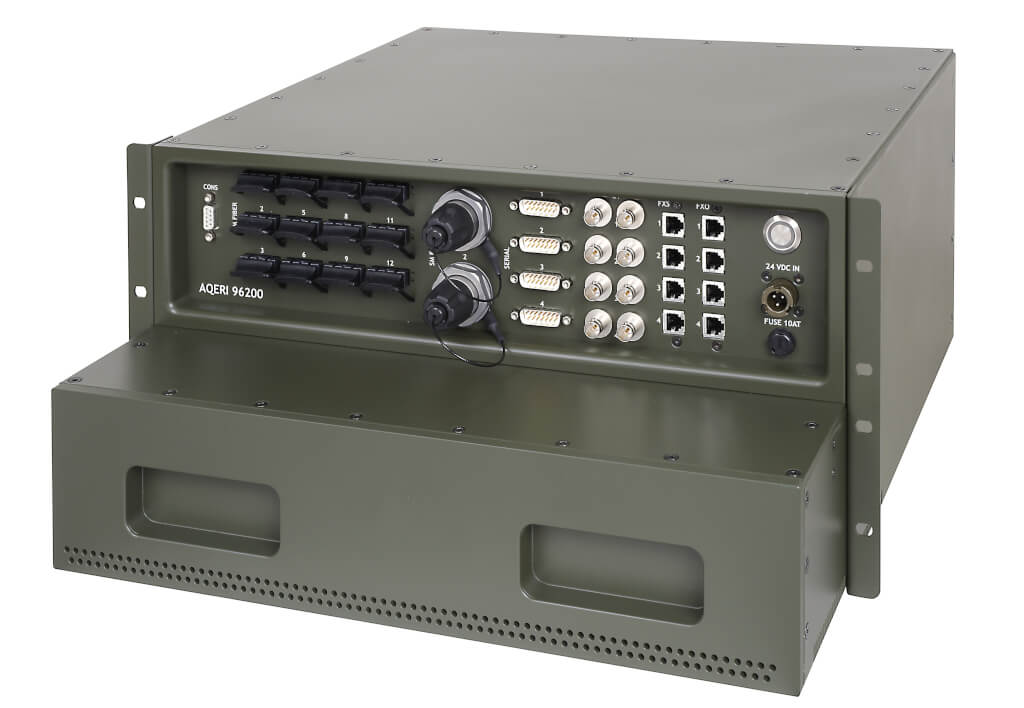

Aqeri 96200 is a 5U high performance rugged Router based on Cisco 3825 integrated services router with an embedded computer module as an option. The unit is equipped with both single and multi mode fiber. The chassis is fully sealed for protection against dust and corrosive elements. The full aluminum construction stands for low radiation and high noise immunity. The rugged design gives protection against shocks and vibration.
___
| TECHNICAL SPECIFICATIONS | |
| Router Board: | Cisco 3825-DC |
| Processor: | 1x 1.4Ghz Pentium M |
| Memory: | 2Gb DDR2 |
| Operating system: | Cisco IOS |
| Storage: | 1x 2,5" HDD/SSD drive |
| I/O Interfaces | |
| Console: | x1 |
| 100 Mbit Multimode: | x12 |
| 100 Mbit Singlemode: | x4 (2 ports in each connector) |
| FXO: | x4 |
| FXS: | x4 |
| 2 Mbit E1: | x8 |
| Serial High-Speed WAN: | x4 |
| CONNECTORS | |
| Console: | DSUB |
| 100 Mbit Multimode: | DC |
| 100 Mbit Singlemode: | Foks4 |
| FXO: | RJ11 |
| FXS: | RJ11 |
| 2 Mbit E1: | BNC |
| Serial High-Speed WAN: | DSUB |
| DC In: | MS3106F 10SL-3S |
| PHYSICAL CHARACTERISTICS | |
| Dimensions: | 444 x 221.6 x 508mm (WxHxD) |
| Weight: | 19 kg |
| Color: | Green, other optional |
| ELECTRICAL SPECIFICATIONS | |
| Power requirements: | 28VDC (18-36VDC, safe start Min 21VDC, Max 33VDC) |
| Power consumption: | 150W at 28VDC (excluding heaters) |
| ENVIRONMENTAL CHARACTERISTICS | |
| Designed to fulfill (other standards on request): | MIL-STD-461E MIL-STD-810G European CE |
| TEMPEST SDIP-27 Level A, B, C | Option |
| Temperature Operating: | -20°C to +55°C |
| Vibration Operating (depending on configuration): | 10-500Hz 1,04g rms |
| Shock Operating (depending on configuration): | 15g, 11ms, ½ sine wave |
| Humidity: | 5% to 95% non condensing |
| Altitude Operating: | 3000m |
