96103
Odolný mobilní router
Základní informace

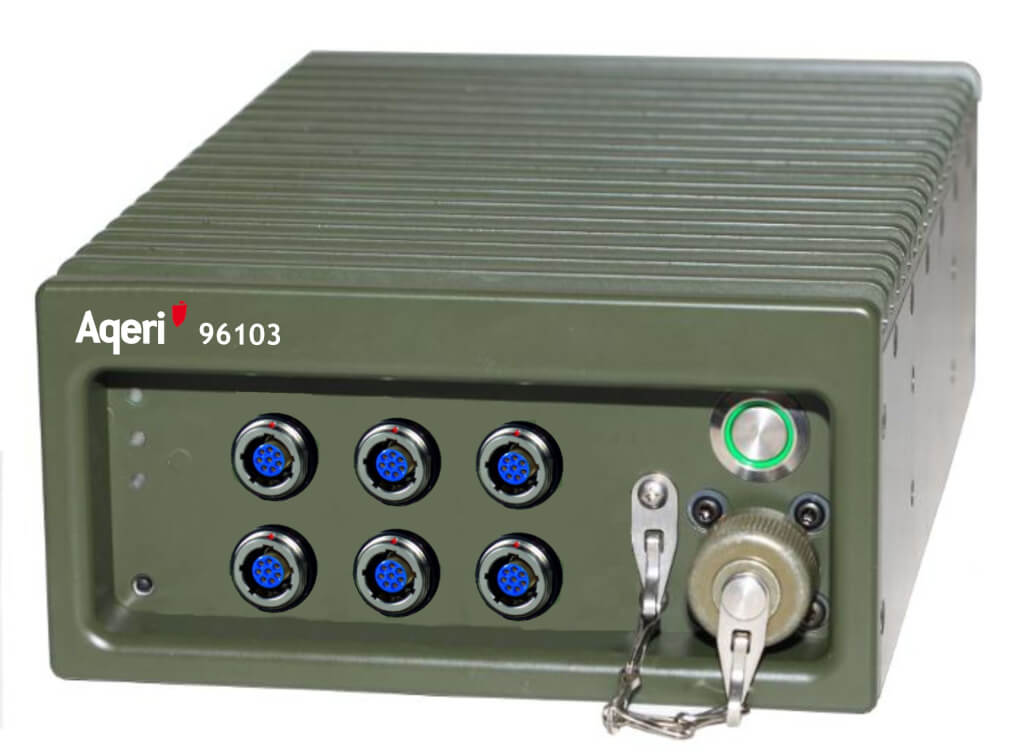

Aqeri 96103 Mobile Router and Integrated Ethernet switch is based on Cisco 5915 Embedded Service Router. The Aqeri 96103 is a small form factor product designed to be deployed in areas with the most demanding environments. A typical scenario is deployed vehicles where space and weight is critical.
The Router has integrated Ethernet switching function and Aqeri field proven ASCC functions (Aqeri Supervisor and Climate Control). The Aqeri 96103 has a designed filtering system to comply with MIL-STD-461E Army Ground levels. As an option Aqeri 96103 can be ordered as a TEMPEST SDIP-27 Level A certified product to comply with NATO compromising emanations standards.
Specifikace
| TECHNICAL SPECIFICATION | |
| Switchboard: | Cisco 5915 Embedded Service Router |
| CONNECTORS | |
| AMC Advanced Military Connectors: | 6 |
| 100Mbit Ethernet Routed Parts: | 2 |
| 100Mbit Ethernet Switched Parts: | 3 |
| Console Port: | 1 |
| Purge button: | 1 |
| PHYSICAL CHARACTERISTICS | |
| Dimensions: | 150 x 75 x 220mm (WxHxD) |
| Weight: | 3kg |
| Color: | Green, other optional |
| ELECTRICAL SPECIFICATIONS | |
| Power requirements: | 9-32VDC |
| Power consumption: | Max 12W at 28VDC (excluding heaters) |
| ENVIRONMENTAL CHARACTERISTICS | |
| Designed to fulfill (other standards on request): | MIL-STD-461E Army Ground Level MIL-STD-1275D MIL-STD-810G European CE |
| TEMPEST SDIP-27 Level A, B, C: | Option |
| Protection: | IP65 |
| Temperature Operating: | -40°C to +70°C |
| Vibration Operating: | 5-500Hz, 2,18g rms |
| Shock Operating: | 40g, 11ms, ½ sine wave |
| Humidity: | 5% to 95% non condensing |
| Altitude Operating: | 3000m |
