91400
Odolný počítač / server s výškou 4U s možností zabudování do 19'' racku
Základní informace

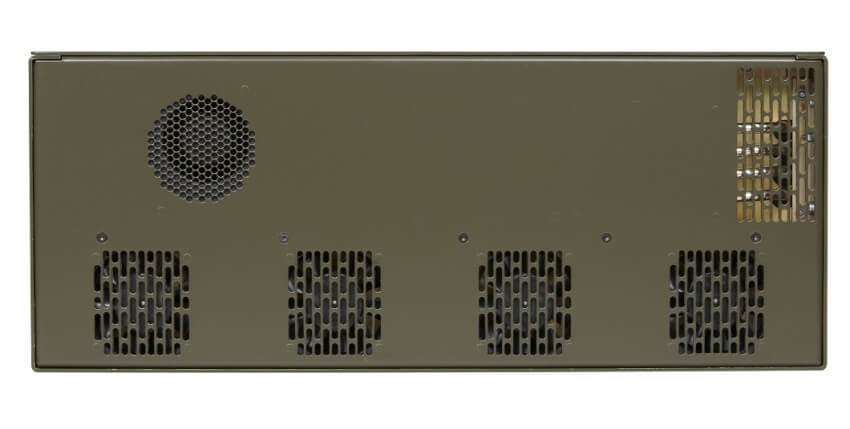

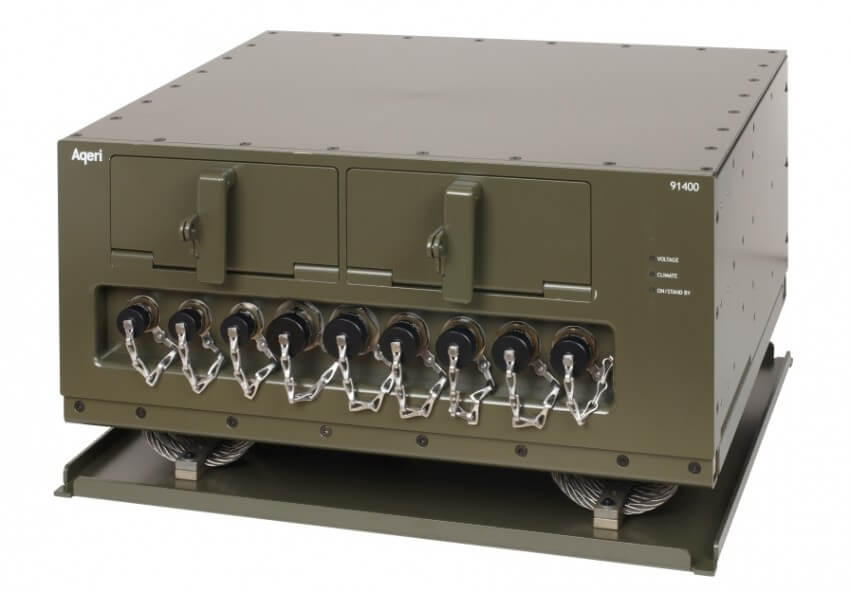

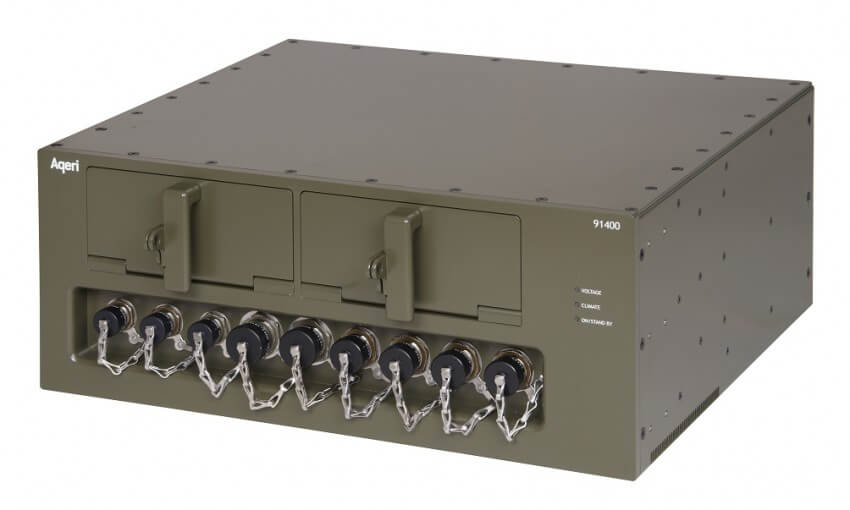

The Aqeri 91400 is a front accessible 19" 4U computer for use in harsh environments. With a depth of only 390 mm it can be used in space critical applications. The chassis is fully sealed for protection against dust and corrosive elements. The full aluminum construction allows for low radiation and high noise immunity. The internal heating and climate control system guaranties operations in extreme temperature environments. The Core 2 Duo processor makes this a high performance computer which also features raid with two Hot Swap drives.

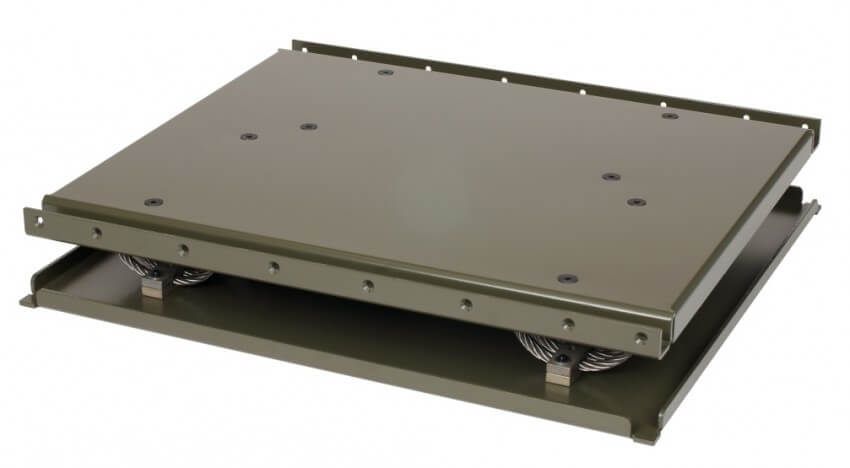

The Aqeri 97002, Shock and Vibration Absorber, can withstand extreme shock forces. It has a compact size since the height is only 68 mm
Specifikace
| TECHNICAL SPECIFICATIONS | |
| Processor: | Intel® 2.13GHz Core2Duo |
| Memory: | DDR2 up to 4GB |
| Operating system: | Optional, Windows, Linux |
| Storage: | Up to 2x2,5" or 3,5" HDD/SSD drive and 1x DVD-RW |
| RAID: | Optional 0/1 |
| I/O Interfaces: | |
| USB: | x4 |
| Parallell: | x1 |
| Gigabit Ethernet: | x1 |
| VGA: | x1 |
| PS/2: | X1 |
| RS232: | X2 |
| RS485: | x1 |
| Line in and Mic Audio: | x2 |
| Graphics: | Intel® Graphics Media Accelerator 3100
Up to 2048 x 1536 Resolution |
| Expansion: | n/a |
| CONNECTORS | |
| USB: | MIL-C-26482 |
| Ethernet: | MIL-C-26482 |
| VGA: | MIL-C-26482 |
| RS232: | MIL-C-26482 |
| Audio: | MIL-C-26482 |
| Parallell: | MIL-C-26482 |
| PS/2: | MIL-C-26482 |
| DC in: | MIL-C-26482 |
| PHYSICAL CHARACTERISTICS | |
| Dimensions: | 440 x 177 x 390mm (WxHXD) |
| Weight: | 17kg |
| Color: | Green, other optional |
| ELECTRICAL SPECIFICATIONS | |
| Power requirements: | 28VDC (18-36VDC, safe start Min 21VDC, Max 33VDC) |
| Power consumptions: | 110W at 28VDC (excluding heaters) |
| ENVIRONMENTAL CHARACTERISTICS | |
| Designed to fulfill (other standards on request): | MIL-STD-461E MIL-STD-1275B MIL-STD-810G European CE |
| TEMPEST SDIP 27 Level A, B, C | Option |
| Temperature Operating: | -20°C to +55°C |
| Vibration Operating (depending on configuration): | 10-500Hz 1,04g rms |
| Shock Operating (depending on configuration): | 15g, 11ms, ½ sine wave |
| Humidity: | 5% to 95% non condensing |
| Altitude Operating: | 3000m |
| AQERI 97002 | SHOCK AND VIBRATION ABSORBER |
| Dimensions: | 438 x 68 x 385mm (WxHxD) |
| Weight: | 5kg |
| Color: | Green, other optional |
