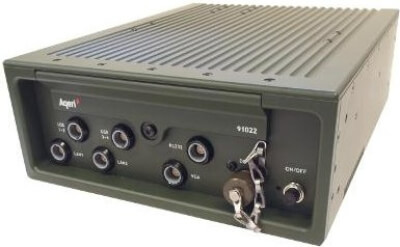

91022
Box PC Aqeri 91022 je malý počítač speciálně uzpůsobený pro použití v těžkých provozních podmínkách, kde je vyžadováno nejsubtilnější mechanické řešení.
Základní informace
The Aqeri 91022 Mobile Computer is a small form factor product designed to be deployed in areas with the most harsh environments and space critical demands.
A typical scenario is deployed vehicles where space and weight is critical. The Aqeri 91022 computer can be mounted stand-alone or as an option in 19” racks. Aqeri 91022 has the latest high performance Intel processor, 2nd generation Core i7 Quad Core and is expandable with up to 2 SSD drives in a RAID configuration for mission critical data. As a standard the Aqeri field proven ASCC functions (Aqeri Supervisor and Climate Control) is implemented. The Aqeri 91022 has designed filtering to comply with MIL-STD-461E Army Ground levels. As an option Aqeri 91022 can be ordered as a TEMPEST SDIP-27 Level A certified product to comply with NATO compromising emanations standards.
Specifikace
| TECHNICAL SPECIFICATION | |
| Processor: | Intel Core i7-2720QM 2.2-3.3GHz, 6Mb cache, 4x core, 8x threads |
| Storage: | 1-2 2,5" SSD |
| Memory: | DDRIII 1366MHz up to 16Gb |
| Graphics: | Intel HD Graphics 3000 |
| I/O Interfaces: | |
| USB: | x4 |
| Gigabit Ethernet: | x2 (Fiber as option) |
| VGA: | x1 |
| RS232: | x1 |
| CONNECTORS | |
| USB: | AMC |
| Gigabit Ethernet: | AMC |
| VGA: | AMC |
| RS232: | AMC |
| PHYSICAL CHARACTERISTICS | |
| Dimensions: | 220 x 88 x 280mm (WxHxD) |
| Weight: | 3kg |
| Color: | Green, other optional |
| ELECTRICAL SPECIFICATIONS | |
| Power requirements: | 9-32VDC |
| Power consumption: | Max 120W at 28VDC (excluding heaters) |
| ENVIRONMENTAL CHARACTERISTICS | |
| Designed to fulfill (other standards on request): | MIL-STD-461E Army Ground Level |
| MIL-STD-1275D | |
| MIL-STD-810G | |
| European CE | |
| TEMPEST SDIP-27 Level A, B, C: | Option |
| Protection: | IP65 |
| Temperature Operating: | -35°C to +55°C |
| Vibration Operating: | 5-500Hz, 2,18g rms |
| Shock Operating: | 40g, 11ms, ½ sine wave |
| Humidity: | 5% to 95% non condensing |
| Altitude Operating: | 3000m |
