21402

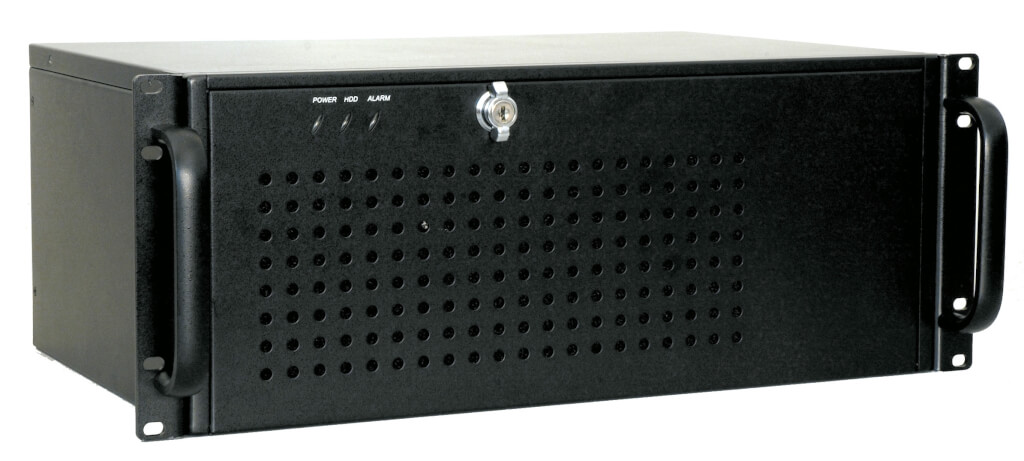

Aqeri 2140 je průmyslový deseti-slotový počítač pro zabudování do 19" racku s výškou 4U.
Základní informace
Aqeri 21402 is an industrial, 4U 10-slot, industrial computer chassis suitable for swing frame. It is possible to add more functions to the system by 4-8 PCI expansion slots. The unit features passive backplane with half size CPU board
Specifikace
| FUNCTIONAL SPECIFICATIONS | |
| Processor: | Different options available |
| Memory: | Up to 1GB |
| Operating system: | Optional |
| Storage: | SATA 2 x 3,5" |
| Drive bays: | 1 x 5,25" DVD |
| Expansion: | 4-8 PCI |
| PHYSICAL CHARACTERISTICS | |
| Dimension: | 431 x 176 x 283mm (WxHxD) |
| Weight: | 9kg |
| Color: | Black |
| ELECTRICAL SPECIFICATIONS | |
| Power requirements: | 100-240V, 50/60Hz |
| Power consumption: | Depending on configuration |
| ENVIRONMENTAL CHARACTERISTICS | |
| Designed to fulfill (other standards on request): | EMC |
| Temperature Operating: | 0°C to +45° C |
