AR-PA810FL / AR-PA810PFL
10.1’’ TFT LCD, Intel Atom E3845/N2930, 2GB DDR3, Touch Screen, 2 x USB2.0 An Intel Atom E3845/N2930-based mainstream performance panel PC with accessible storage space and an IP65 waterproof front panel.
Základní informace
- 10.1” Industrial Compact Size Panel PC
- Flat front panel touch screen
- Fanless design
- Intel Bay Trail N2930(1.83GHz) CPU built-in/E3845(1.91GHz ) for option
- Onboard 2GB DDR3L-1600MHz / 4GB(option)
- 9~36VDC wide-ranging power input
- IP65 compliant front panel
- Optional projected capacitive touchscreen support 7H anti-scratch surface
Specifikace
| General PC Feature |
| CPU | Onboard Intel Bay Trail N2930(1.83GHz) Processor / E3845(1.91GHz ) for option |
| System Chipset | Intel Bay Trail SoC |
| System Memory | Onboard 2GB DDR3L-1600MHz / 4GB(option) |
| Display |
| Display Type | 10.1" |
| Max. Resolution | 1280 x 800 |
| Max. Color | 262 K |
| Luminance (cd/m²) | 350 |
| Contrast Ratio | 800 : 1 |
| View angle(H°/V°) | H:160° / V:160° |
| Backlight Lifetime | 40,000(hrs) |
| Touch screen - Resistive Touch Window Type |
| Type | Resistive Touch Windows |
| Interface | USB |
| Light Transmission(%) | Resistive Touch Windows: 80% |
| Touch screen - Projected Capacitive Type |
| Type | Projected Capacitive Touch(For P Model) |
| Interface | USB |
| Light Transmission(%) | Projected Capacitive Touch: 90% |
| Storage |
| HDD | 1 x 2.5" SATA HDD bay for SATA HDD (Easy Accessible) |
| Movable device | 1 x SD card slot, up to 32GB |

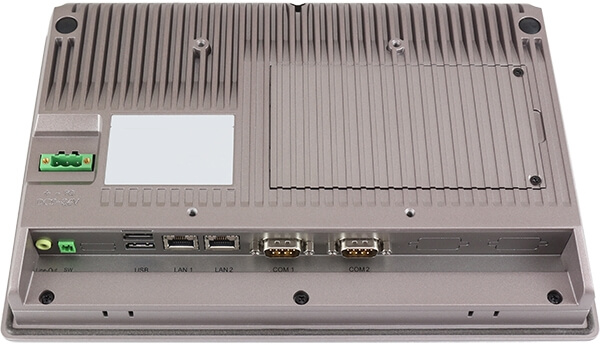

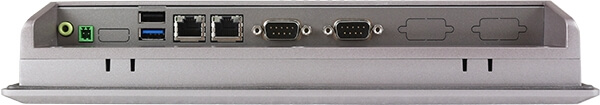

| I/O Port |
| USB |
1 x USB 2.0 type A 1 x USB 3.0 type A |
| Serial/Parallel |
1 x RS-232 DB-9(COM2) 1 x DB-9 RS-232/422/485 (Default RS-232)(COM1) |
| Audio |
1 x Audio Line Out / 1 x HDMI Port (reserved, no printing) |
| LAN |
2 x GbE LAN RJ-45 |
| Power |
1 x 3-pin Terminal Block DC Power input 1 x 2-pin connector for power on/off button |
| Option |
(Only for AR-PA810(P)FL, AR-PA812(P)FL, and AR-PA815(P)FL) ● 2 x RS-232 DB-9 1 x mini PCIe slot via TB-528C2ME1 / 2 x CAN bus via TB-528CAN2 / 2 x USB 2.0 type A Via TB-528U2 ● 2 x USB 2.0 type A 1 x mini PCIe slot 1 x RS-232 DB-9 via TB-528C1U2P1 for AR-PA812(P)FL ● 2 x USB 2.0 type A 1 x mini PCIe slot 1 x RS-232 DB-9 via TB-528C1U2 for AR-PA810(P)FL |
| Expansion |
| Onboard expansion bus |
1 x Internal mini PCIe slot (full size) |
| Power Requirement |
| Power Input |
9~36V |
| Power Consumption | Max: 11.2W Max:14W(P) |
| Software |
| OS Support |
Windows Embedded Compact 7, Windows Embedded Standard 7, Windows Embedded 8 Standard, Windows Embedded 8.1 Industry |
| Mechanical |
| Color |
RAL 9007 |
| IP Rating |
Aluminum Die-casting Front Bezel and Chassis |
| Mounting |
Panel Mounting, VESA 100 x 100 |
| Dimension (mm) |
285 x 189 x 48.9 |
| Net Weight (Kgs) |
1.9 kg |
| Environmental |
| Operating temperature(°C) | 0~50°C |
| Storage temperature(°C) | -20~60°C |
| Storage humidity | 10 to 90% @ 40°C, non- condensing |
| Certification | CE, FCC Class A, CB, UL |
| Ordering Information |
| AR-PA810(P)FL |
10.1” WVGA Fanless HMI barebone with Intel N2930 / E3845 CPU, 2GB DDR3 RAM, Resistive touch screen, 9~36V DC input with adapter / Projected Capacitive touch screen, Aluminum chassis |

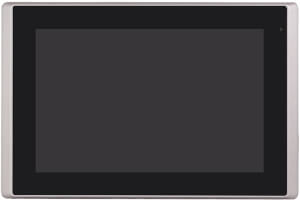

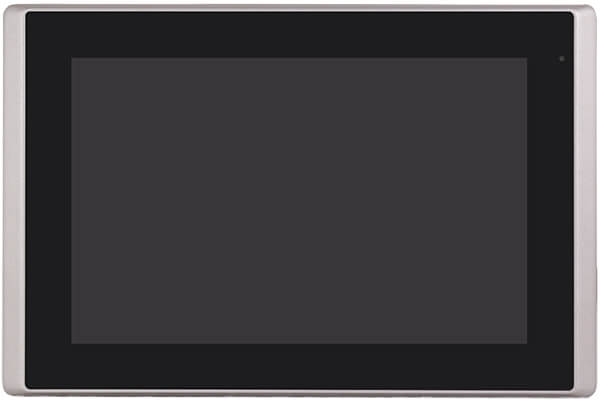

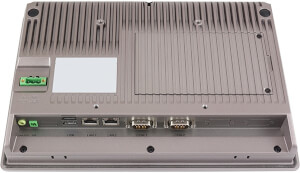

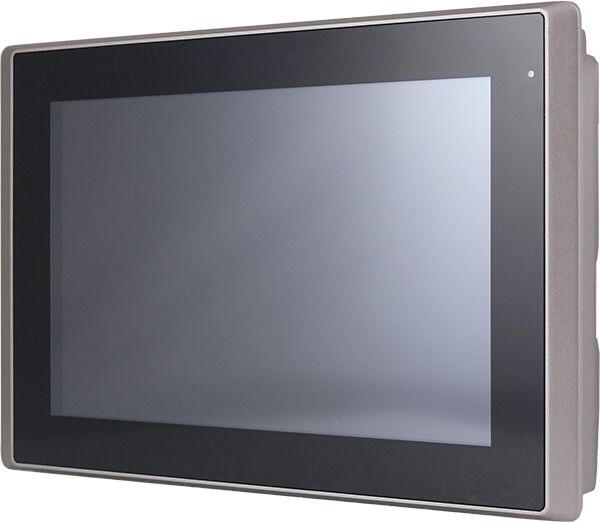

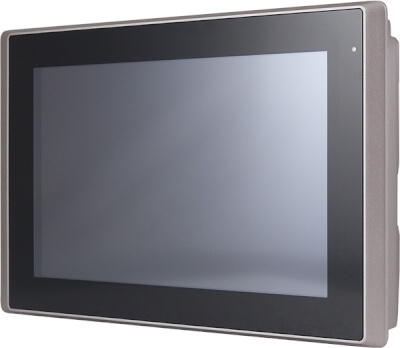

Fotogalerie
