AR-PA808FL / AR-PA808PFL
8’’ TFT LCD, Intel Atom E3845/N2930, 2GB DDR3, Touch Screen, 2 x USB2.0 An Intel Atom E3845/N2930-based mainstream performance panel PC with accessible storage space and an IP65 waterproof front panel.
Základní informace

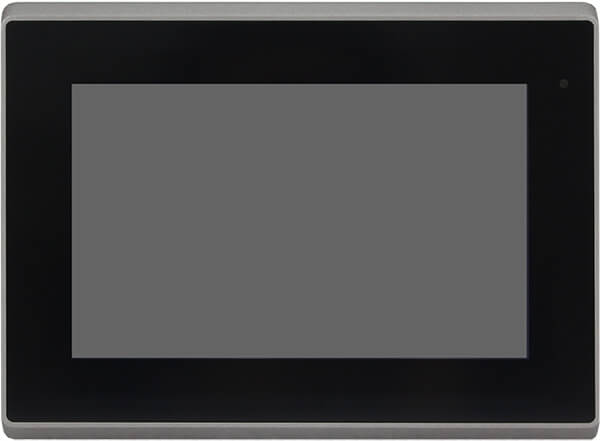

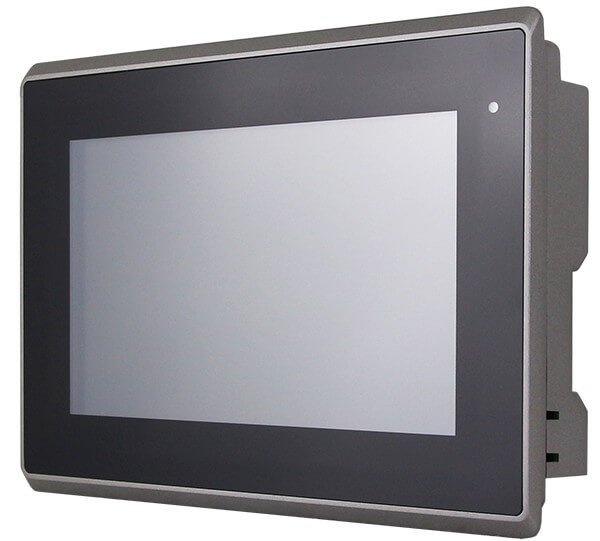

1. 8” Industrial Compact Size Panel PC
2. Flat front panel touch screen
3. Fanless design
4. Intel Bay Trail N2930(1.83GHz) CPU built-in/E3845(1.91GHz ) for option
5. Onboard 2GB DDR3L-1600MHz / 4GB(option)
6. 9~36VDC wide-ranging power input
7. IP65 compliant front panel
8. Optional projected capacitive touchscreen support 7H anti-scratch surface
2. Flat front panel touch screen
3. Fanless design
4. Intel Bay Trail N2930(1.83GHz) CPU built-in/E3845(1.91GHz ) for option
5. Onboard 2GB DDR3L-1600MHz / 4GB(option)
6. 9~36VDC wide-ranging power input
7. IP65 compliant front panel
8. Optional projected capacitive touchscreen support 7H anti-scratch surface
Specifikace
| General PC Feature |
| CPU | Onboard Intel Bay Trail N2930(1.83GHz) Processor / E3845(1.91GHz ) for option |
| System Chipset | Intel Bay Trail SoC |
| System Memory | Onboard 2GB DDR3L-1600MHz / 4GB(option) |
| Display |
| Display Type | 8" |
| Max. Resolution | 800 x 600 |
| Max. Color | 262 K |
| Luminance (cd/m²) | 350 |
| Contrast Ratio | 500 : 1 |
| View angle(H°/V°) | H:140° / V:125° |
| Backlight Lifetime | 40,000(hrs) |
| Touch screen - Resistive Touch Window Type |
| Type | Resistive Touch Windows |
| Interface | USB |
| Light Transmission(%) | Resistive Touch Windows: 80% |
| ouch screen - Projected Capacitive Type |
| Type | Projected Capacitive Touch(For P Model) |
| Interface | USB |
| Light Transmission(%) | Projected Capacitive Touch: 90% |
| Storage |
| HDD | 1 x SATA MO-297 SSD bay (Easy Accessible) |
| Movable device | 1 x SD card slot, up to 32GB |

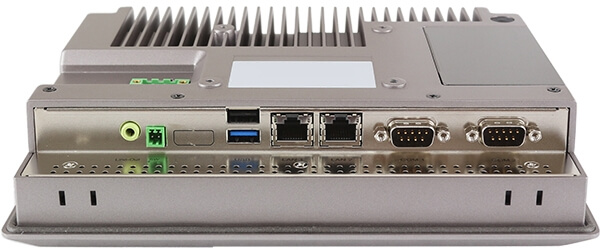

| I/O Port |
| USB | 1 x USB 2.0 type A + 1 x USB 3.0 type A |
| Serial/Parallel | 1 x RS-232 DB-9(COM2) + 1 x DB-9 RS-232/422/485 (Default RS-232)(COM1) |
| Audio | 1 x Audio Line Out / 1 x HDMI Port (reserved, no printing) |
| LAN | 2 x GbE LAN RJ-45 |
| Power | 1 x 3-pin Terminal Block DC Power input 1 x 2-pin connector for power on/off button |
| Expansion |
| Onboard expansion bus | 1 x Internal mini PCIe slot (full size) |
| Power Requirement |
| Power Input | 9~36V |
| Power Consumption | Max: 10.8W Max:13.9W(P) |
| oftware |
| OS Support | Windows Embedded Compact 7, Windows Embedded Standard 7, Windows Embedded 8 Standard, Windows Embedded 8.1 Industry |
| Mechanical |
| olor | RAL 9007 |
| IP Rating | Aluminum Die-casting Front Bezel and Chassis |
| Mounting | Panel Mounting, VESA 75 x 75 |
| Dimension (mm) | 231 x 176 x 50 |
| Net Weight (Kgs) | 1.9 kg |
| Environmental |
| Operating temperature(°C) | 0~50°C |
| Storage temperature(°C) | -20~60°C |
| Storage humidity | 10 to 90% @ 40°C, non- condensing |
| Certification | CE, FCC Class A, CB, UL |
| Ordering Information |
| AR-PA807(P)FL-D2550 |
8” WVGA Fanless HMI barebone with Intel N2930 / E3845 CPU, 2GB DDR3 RAM, Resistive touch screen, 9~36V DC input with adapter / Projected Capacitive touch screen, Aluminum chassis |
