AR-ES8020FL

(RDC R8610)Fanless and Dustproof RDC R8610 PC/104+ Embedded System RDC R8610 486 133MHz CPU Fanless Design Onboard SDRAM 64MB 10/100 LAN Digital I/O 2 x USB2.0, 3 x Serial Port

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Detail Fotogalerie Ke stažení

Detail

Specifications

[System]

Cpu	RDC R8610 133MHz
Memory	Onboard 64MB SDRAM
BIOS	AMI
WatchDog Timer	Software programmable 1~255 sec.
OS	DOS, Windows CE, Linux

[Ethernet]

Connector	1 x RJ45
Controller	RDC R8610 (10/100Mbps)

[Storage]

IDE	1 x IDE (44-pin) support ATA33
SSD	One CF adapter space (By R-B9462C),Onboard 128MB NAND Flash

[I/O]

Serial Port	1 x RS-232, 2 x 232/485 (3 x DB9)
USB Port	2 x USB 2.0 (2 x external port)
GPIO	1 x DB15
Keyboard/Mouse	PS/2 keyboard and mouse connector

[Mechanical & Environment]

Color	Black
Dimension	145mm x 150mm x 51mm (W x D x H)
Power Supply	20 Watt power adapter 5V, DC–in Power connector (Terminal block), DC output connector (as Molex with P/N 39-01-2026(2 Circuits))
Indicator	Power LED (Green). HDD LED (Orange)
Operating Temp.	-20~60℃ (-4~140°F)
Storage Temp.	-20~80℃ (-4~176°F)
Safety	CE, FCC class A

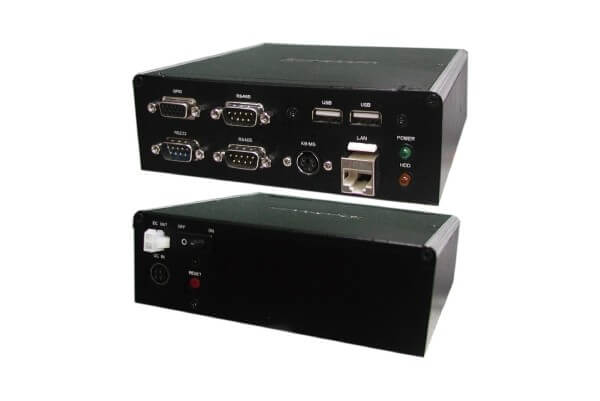

Fotogalerie
