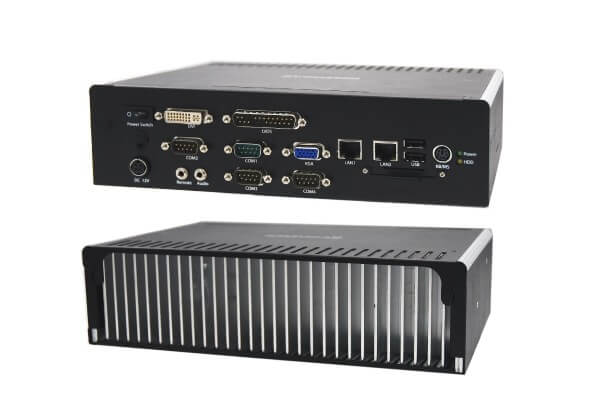

AR-ES7230FL

(Turion 64 X2/Sempron)Fanless and Dustproof AMD Turion 64 X2/Sempron Embedded System Feature AMD M690E & SB600 Chipset AMD Socket S1 Support Turion 64 x2/Sempron VGA/DVI/LVDS Full Direct X 9.0 and Shader Model 2.0 Support Dual Giga LAN Hardware

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Detail Fotogalerie Ke stažení

Detail

Specifications

[System]

Cpu	AMD socket S1 support AMD Turion 64 X2/Sempron
Chipset	AMD M690E + AMD SB600
Memory	1 x 200-pin SO-DIMM socket support 400/533/667MHz DDR2 SDRAM up to 2GB, 1GB pre-installed
Battery	Lithium Battery, 3V 220mAH
BIOS	Award
RTC	Yes
Hardware Monitoring	1. CPU voltage 2. CPU and System temperature 3. System and CPU Fan speed 4. System Fan speed control
WatchDog Timer	Software programmable 1~255 sec.
OS	Windows Vista/XP/XP Embedded/CE, Linux

[Video/Display]

Video Controller	AMD M690E Integrated graphic processor
Video Interface	1 x VGA port, 1 x DVI port, 1 x Dual Channel 24-bit LVDS port (Use the same connector with LPT)

[Ethernet]

Connector	2 x RJ45
Controller	Broadcom BCM5787 (Giga bps)

[Storage]

HardDisk Storage	Anti-shock drive bay for 2.5'' HDD
IDE	1 x IDE (44-pin)
SATA	1 x SATA 1 port
SSD	1 x Compact Flash socket

[I/O]

Serial Port	4 x RS-232 (4 x DB9)
USB Port	6 x USB2.0 (2 x external port, 4 x onboard pin header)
Audio	Stereo Audio output
GPIO	8-bit Digital I/O
Parallel Port	1 LPT port (Use the same connector with LPT)
Keyboard/Mouse	PS/2 keyboard and mouse connector
Expansion Slot	1 x PCI-104 slot

[Mechanical & Environment]

Color	Black
Dimension	251mm x 165mm x 67mm (W x D x H))
Power Supply	96W adaptor with 9427A module, Lockable DC plug-in jack
Power Mode	AT mode
Indicator	Power LED, HDD LED
Operating Temp.	0~50℃ (32~122°F)
Storage Temp.	-20~60℃ (-4~140°F)
Safety	CE, FCC class A
Power Consumption	58W without external devices
