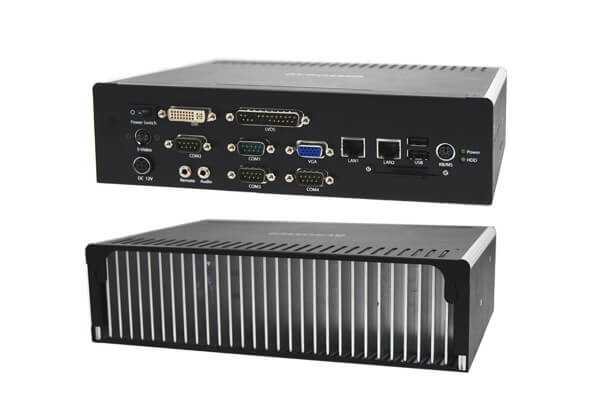

AR-ES5430FL

(Intel Core 2 Duo/Celeron M)Fanless and Dustproof Intel 945GME Embedded Systém Feature Intel 945GME + ICH7M Support Core 2 Duo/Celeron M VGA/DVI/LVDS/TV-Out Dual Giga LAN PCI-104 Expansion Anti-Shock 2.5" HDD Mounting Kit Audio, USB2.0, IDE, CF

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Detail Fotogalerie Ke stažení

Detail

Specifications

[System]

Cpu	Socket M support Intel Core 2 Duo/Celeron M
Chipset	Intel 945GME + Intel ICH7M
Front Side Bus	533/667MHz
Memory	1 x 200-pin SO-DIMM socket support 533/667MHz DDR2 SDRAM up to 2GB, 1GB pre-installed
Battery	Lithium Battery, 3V 220mAH
BIOS	Award
RTC	Yes
Hardware Monitoring	1. CPU voltage 2. CPU and System Temperature 3. System and CPU FAN speed 4. System Fan Speed Control
WatchDog Timer	Software programmable 1~255 sec.
OS	Windows XP/XP Embedded/2000/CE, Linux

[Video/Display]

Video Controller	Intel 945GME integrated GMA 950 graphic controller
Video Interface	1 x VGA port, 1 x DVI port, 1 x Dual Channel 18-bit LVDS port, 1 x TV-Out port

[Ethernet]

Connector	2 x RJ45
Controller	Broadcom BCM5787 (Giga bps)

[Storage]

HardDisk Storage	Anti-shock drive bay for 2.5'' HDD
IDE	1 x E-IDE (44-pin)
SATA	1 x SATA 2 port
SSD	1 x Compact Flash Type II socket

[I/O]

Serial Port	4 x RS-232 (4 x DB9)
USB Port	4 x USB2.0 (2 x external port, 2 x onboard pin header)
Audio	Stereo Audio output
GPIO	8-bit Digital I/O
Keyboard/Mouse	PS/2 keyboard and mouse connector
Expansion Slot	1 x PCI-104 slot

[Mechanical & Environment]

Construction	Aluminum and Metal
Color	Black
Dimension	251mm x 165mm x 67mm (W x D x H)
Power Supply	96W adaptor with AR-B9427A power module. Lockable DC plug-in jack
Power Mode	Power Switch & Remote power switch jack
Indicator	Power LED, HDD LED
Operating Temp.	0~50℃ (32~122°F) for CF Only, 0~45℃(32~113°F)for HDD Type
Storage Temp.	-20~60℃ (-4~140°F)
Safety	CE, FCC class A
Power Consumption	39.6W without external devices( T7400 / 1G / 80G HDD at CPU100% loading)
