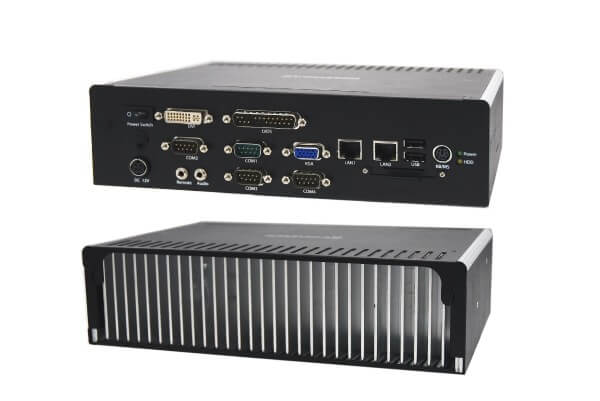

AR-ES5231FL

(Celeron M)Fanless and Dustproof Intel 910GMLE Celeron M 1GHz/600MHz Embedded System Feature 1. Support Intel Core 2 Duo/Core Duo/Celeron M 2. Support Dual Channel DDR2up to 2GB 3. VGA/DVI/LVDS/TV-Out 4. 6 Serial Port (5 Port with Easy-Plug Conne

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Detail Fotogalerie Ke stažení

Detail

Specifications

[System]

Cpu	Onboard Intel Celeron M 1GHz Zero L2 cache/600MHz 512K L2 cache
Chipset	Intel 910GMLE + Intel ICH6M
Front Side Bus	400MHz
Memory	1 x 200-pin SO-DIMM socket support 400MHz DDR2 SDRAM up to 1GB, 1GB DDR2 pre-installed
Battery	Lithium Battery, 3V 220mAH
BIOS	Award
RTC	Yes
Hardware Monitoring	1. CPU voltage 2. CPU and system temperature 3. System and CPU Fan speed 4. System Fan speed control
WatchDog Timer	Software programmable 1~255 sec.
OS	Windows XP/XP Embedded/2000/CE, Linux

[Video/Display]

Video Controller	Intel 910GMLE integrated GMA 900 graphic controller
Video Interface	1 x VGA port 1 X DVI port 1 x Dual Channel 18-bit LVDS port

[Ethernet]

Connector	2 x RJ45
Controller	Intel 82541PI (Giga bps) Intel 82562EZ PHY (10/100Mbps)

[Storage]

IDE	1 x E-IDE (44-pin)
SATA	1 x SATA 1 port
SSD	1 x Compact Flash Type II socket
Hard Drive	Anti-shock drive bay for 2.5

[I/O]

Serial Port	3 x RS-232, 1 x RS-232/422/485 (4 x DB9)
USB Port	4 x USB2.0 (2 x external port, 2 x onboard pin header)
Audio	Stereo Audio output
GPIO	8-bit Digital I/O
Keyboard/Mouse	PS/2 keyboard and mouse connector
Expansion Slot	1 x PCI-104 slot

[Mechanical & Environment]

Construction	Aluminum and Metal
Color	Black
Dimension	251mm x 165mm x 67mm (W x D x H)
Power Supply	60 Watt AC to DC 12V power adaptor, 110~240V AC input, Lockable DC plug-in jack, Power module：AR-B9427,
Power Requirement	12V single voltage input
Indicator	Power LED, HDD LED
Operating Temp.	0~50℃ (32~122°F)
Storage Temp.	-20~60℃ (-4~140°F)
Relative Humidity	0 to 90% @ 40℃, non-condensing
Safety	CE, FCC class A
