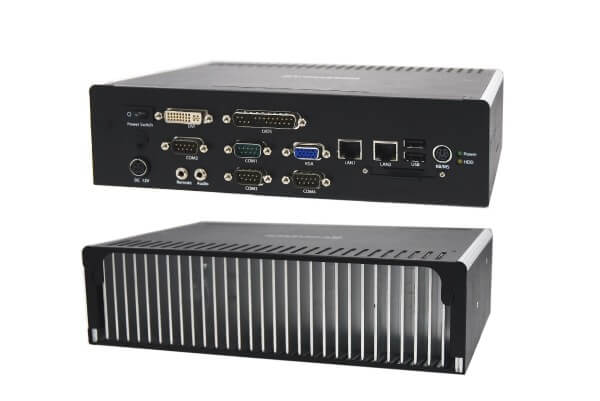

AR-ES5230FL

(Intel Pentium/Celeron M)Fanless and Dustproof Intel 915GME Pentium/Celeron M Embedded Systém Feature Intel 915GME + ICH6M Support Pentium/Celeron M VGA/DVI/LVDS 1 x Giga LAN and 1 x 10/100 LAN PCI-104 Interface Anti-Shock 2.5" HDD Mounting Kit

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Detail Fotogalerie Ke stažení

Detail

Specifications

[System]

Cpu	Support Intel Pentium/Celeron M
Chipset	Intel 915GME + Intel ICH6M
Front Side Bus	400/533MHz
Memory	1 x 200-pin SO-DIMM socket support 400/533MHz DDR2 SDRAM up to 1GB, 1GB pre-installed
Battery	Lithium Battery, 3V 220mAH
BIOS	AWARD
RTC	Yes
Hardware Monitoring	1. CPU voltage 2. CPU and System Temperature 3. System and CPU FAN speed 4. System Fan Speed Control
WatchDog Timer	Software programmable 1~63 Seconds
OS	Windows XP/XP Embedded/2000/CE, Linux

[Video/Display]

Video Controller	Intel 915GME integrated GMA 900 graphic controller
Video Interface	1 x VGA port, 1 x DVI port, 1 x Dual Channel 18-bit LVDS port

[Ethernet]

Connector	2 x RJ45
Controller	Intel 82451PI (Giga bps) , Intel 82541QM (10/100Mbps)

[Storage]

HardDisk Storage	Anti-shock drive bay for 2.5'' HDD
IDE	1 x E-IDE (44-pin)
SATA	1 x SATA 1 port
SSD	1 x Compact Flash Type II socket

[I/O]

Serial Port	3 x RS-232, 1 x RS-232/422/485 (4 x DB9)
USB Port	4 x USB2.0 (2 x external port, 2 x onboard pin header)
Audio	Stereo Audio output
GPIO	8-bit Digital I/O
Keyboard/Mouse	PS/2 keyboard and mouse connector
Expansion Slot	1 x PCI-104 Slot

[Mechanical & Environment]

Construction	Aluminum and Metal
Color	Black
Dimension	251mm x 165mm x 67mm (W x D x H)
Power Supply	Standard model with 100~240V AC input 60W Power Adapter,Wide Range Model(9~32V)without Power Adapter,Lockable DC plug-in jack
Power Mode	Power Switch & Remote power switch jack
Power Requirement	AT:12V single voltage input or 9-32V DC Input
Indicator	HDD LED, Power LED
Operating Temp.	0~50℃ (32~122°F)
Storage Temp.	-20~60℃ (-4~140°F)
Relative Humidity	0 to 90% @ 40℃, non-condensing
Safety	CE, FCC class A
Power Consumption	47W without external devices
