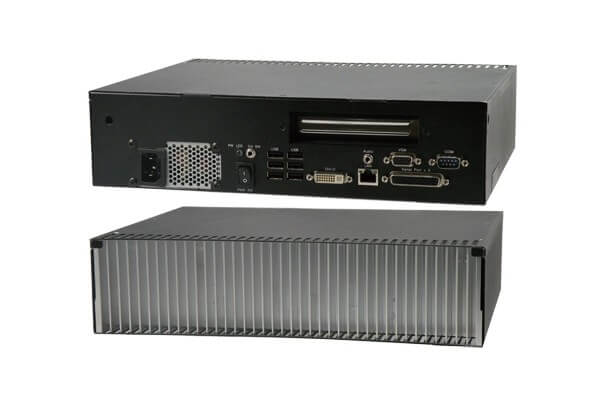

AR-ES0892FL

(Intel Core 2 Duo/Core Duo/Celeron M) Fanless Embedded System Powered by Intel Core 2 Duo Processor Feature Support Core 2 Duo/Core Duo/Celeron M 2 x 200-pin SO-DIMM Socket Support Dual Channel DDR2 SDRAM up to 4GB VGA/DVI/LVDS PCI & PCI Express

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Detail Fotogalerie Ke stažení

Detail

Specifications

[System]

Cpu	Socket M support Intel Core 2 Duo/Core Duo/Celeron M
Chipset	Intel 945GME + Intel ICH7M
Front Side Bus	533/667MHz
Memory	2 x 200-pin SO-DIMM socket support 533/667MHz Dual Channel DDR2 SDRAM up to 4GB, 512MB pre-installed
Battery	Lithium Battery, 3V 220mAH
BIOS	Award
RTC	Yes
Hardware Monitoring	Yes
WatchDog Timer	Software programmable 1~255 sec.
Security	TPM 1.2, ProtectU (Option)
OS	Windows XP/XP Embedded, Linux

[Video/Display]

Video Controller	Intel 945GME integrated GMA 950 graphic controller
Video Interface	1 x VGA port, 1 x DVI port, 1 x Dual Channel 18-bit LVDS port, "Integrated PWM interface for LCD backlight inverter control"

[Ethernet]

Connector	1 x RJ45
Controller	Intel 82573E (10/100Mbps)

[Storage]

HardDisk Storage	Anti-shock drive bay for 2.5'' HDD
IDE	2 x IDE (40 & 44-pin connector)
SATA	2 x SATA 2 port
SSD	1 x Compact Flash socket

[I/O]

Serial Port	5 x RS-232, 1 x RS-232/422/485 (DB44 x 1 includes 5 serial ports, DB9 x 1)
USB Port	8 x USB2.0 (6 x external port, 2 x onboard pin header)
Audio	Stereo audio output
GPIO	8-bit Digital I/O
IrDA	Yes
Keyboard/Mouse	PS/2 keyboard and mouse pin header
Expansion Slot	1 x PCI slot

[Mechanical & Environment]

Construction	Aluminum Housing
Color	Blue color power LED
Dimension	323mm x 252mm x 80mm (W x D x H)
Power Supply	90~260V AC Input, 120W ATX Power Supply
Power Mode	Power Switch & Remote power switch jack
Indicator	Power LED, HDD LED
Operating Temp.	0~60℃ (32~140°F)
Storage Temp.	-20~60℃ (-4~140°F)
Safety	CE, FCC class A
Power Consumption	65W without external devices
